On the Formation of Magnetic Structures by the Combined Action of Velocity Shear and Magnetic Buoyancy

  • Authors: Kelly S. Cline, Nicholas H. Brummell, and Fausto Cattaneo

Cline, Brummell, & Cattaneo 2003 The Astrophysical Journal 588 630.

  • Provider: AAS Journals

Caption: Fig. 3.

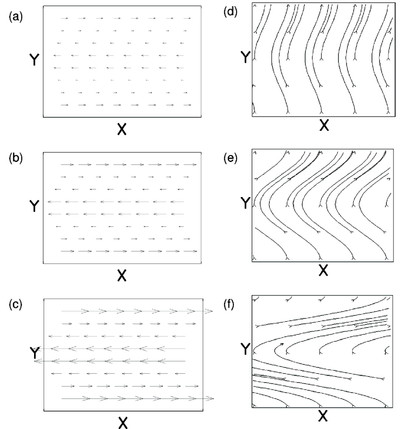

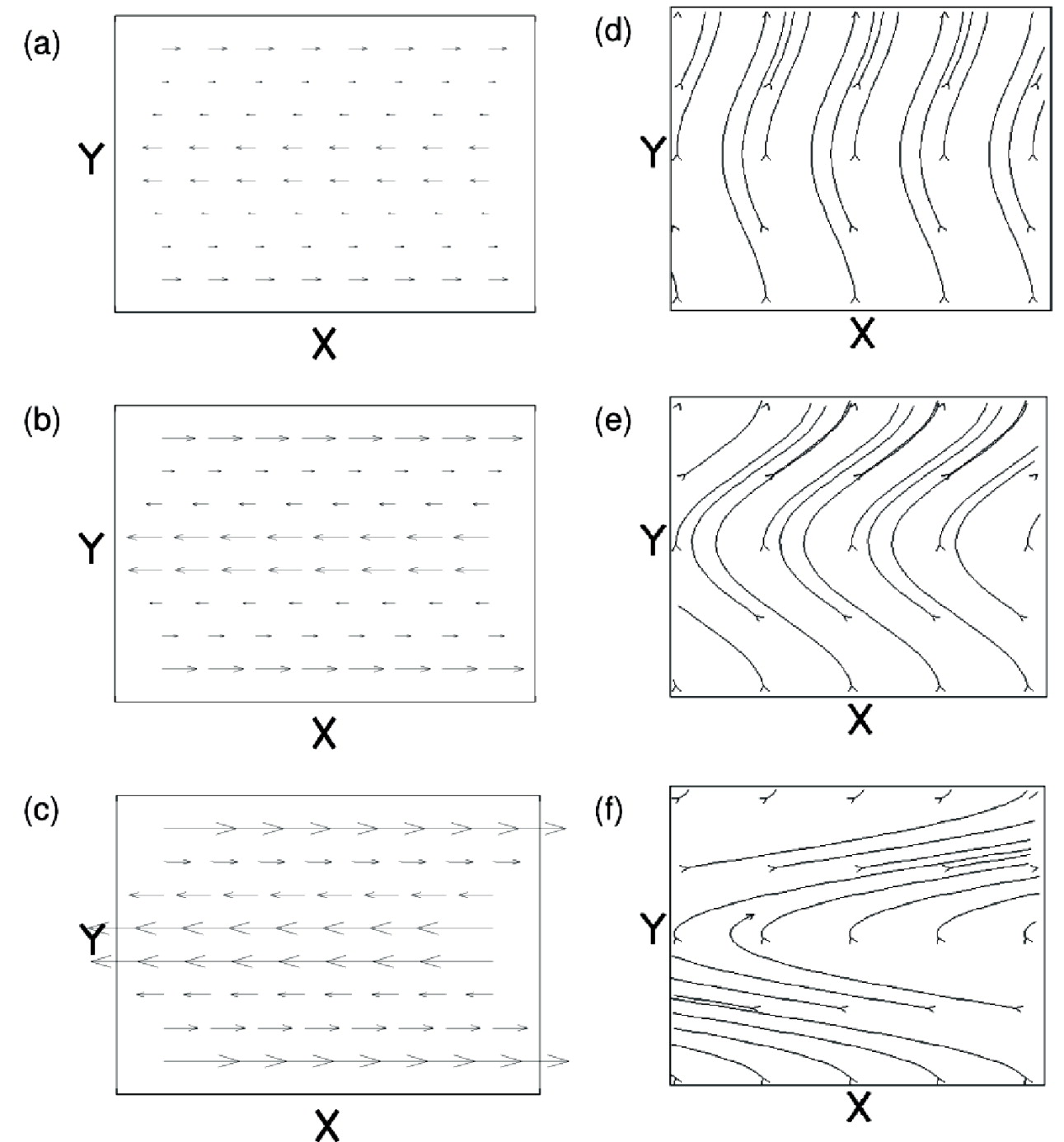

Creation of the shear flow and the stretching of the initial poloidal field into toroidal field with time. Shown are (x, y)‐planes at depth ﹩z=z_{v}﹩ from case M1 at times ﹩t=0.70﹩, 1.40, 4.12. The left‐hand panels show vector arrows of the (u, ﹩v﹩) flow field, exhibiting the buildup of u toward the target velocity. The right‐hand panels show magnetic field lines being stretched from their initial y‐direction (poloidal) into the x‐direction (toroidal) by the action of the building velocity shear.
