On the Formation of Magnetic Structures by the Combined Action of Velocity Shear and Magnetic Buoyancy

Authors: Kelly S. Cline, Nicholas H. Brummell, and Fausto Cattaneo

Cline, Brummell, & Cattaneo 2003 The Astrophysical Journal 588 630.

Provider: AAS Journals

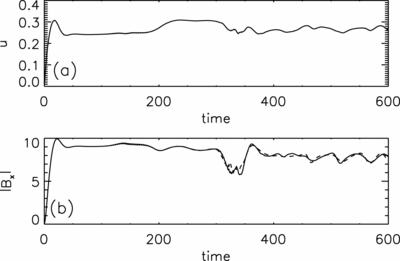

Caption: Fig. 18.

Scalar signatures of the case VA4, where KH events are occurring continuously rather than intermittently. Plotted are the maxima of (a) u and (b) B_x (solid line) and the modulus of the minimum of B_x (dashed line) as before.
