On the Formation of Magnetic Structures by the Combined Action of Velocity Shear and Magnetic Buoyancy

Authors: Kelly S. Cline, Nicholas H. Brummell, and Fausto Cattaneo

Cline, Brummell, & Cattaneo 2003 The Astrophysical Journal 588 630.

Provider: AAS Journals

Caption: Fig. 13.

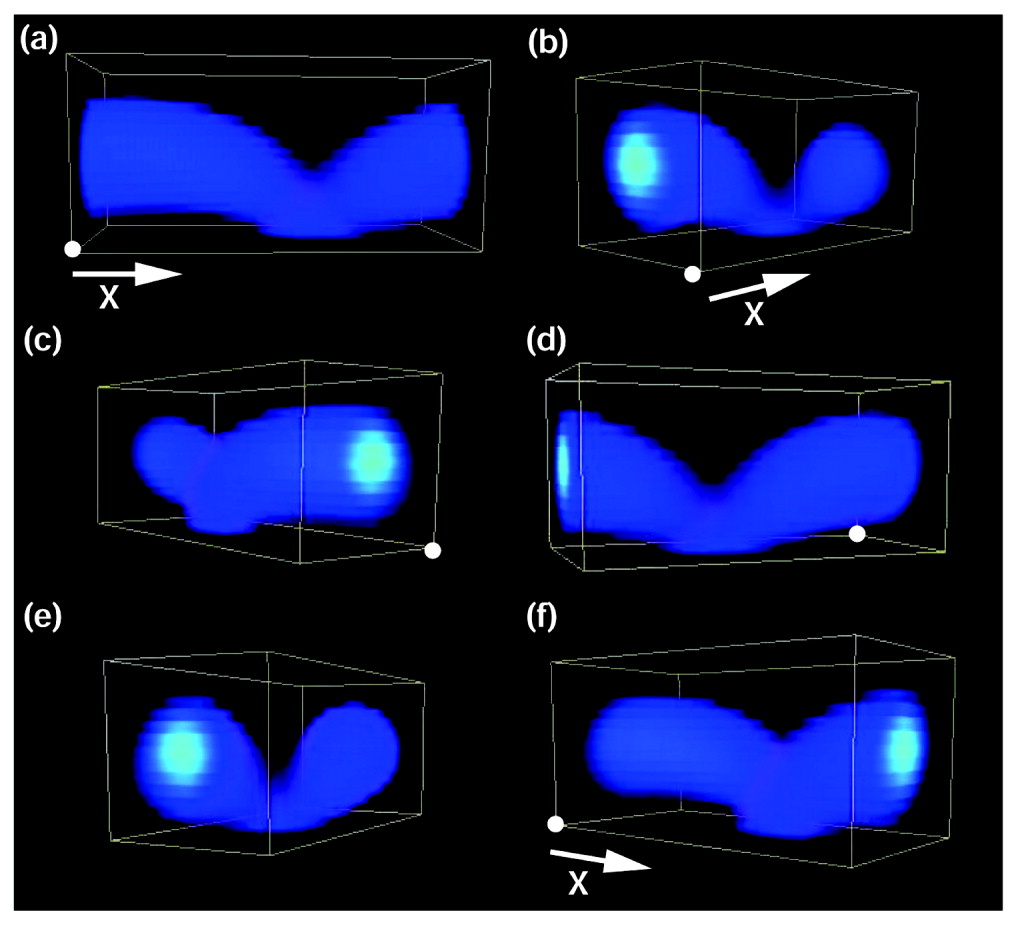

Magnetic structure helically displaced by the three‐dimensional KH instability. We have removed the helical magnetic structure from the domain and show it from several different angles so that the geometry is apparent. We show volume renderings of B² from a subset of the domain in case VA3 at ﹩t=350.5﹩.
