On the Formation of Magnetic Structures by the Combined Action of Velocity Shear and Magnetic Buoyancy

Authors: Kelly S. Cline, Nicholas H. Brummell, and Fausto Cattaneo

Cline, Brummell, & Cattaneo 2003 The Astrophysical Journal 588 630.

Provider: AAS Journals

Caption: Fig. 12.

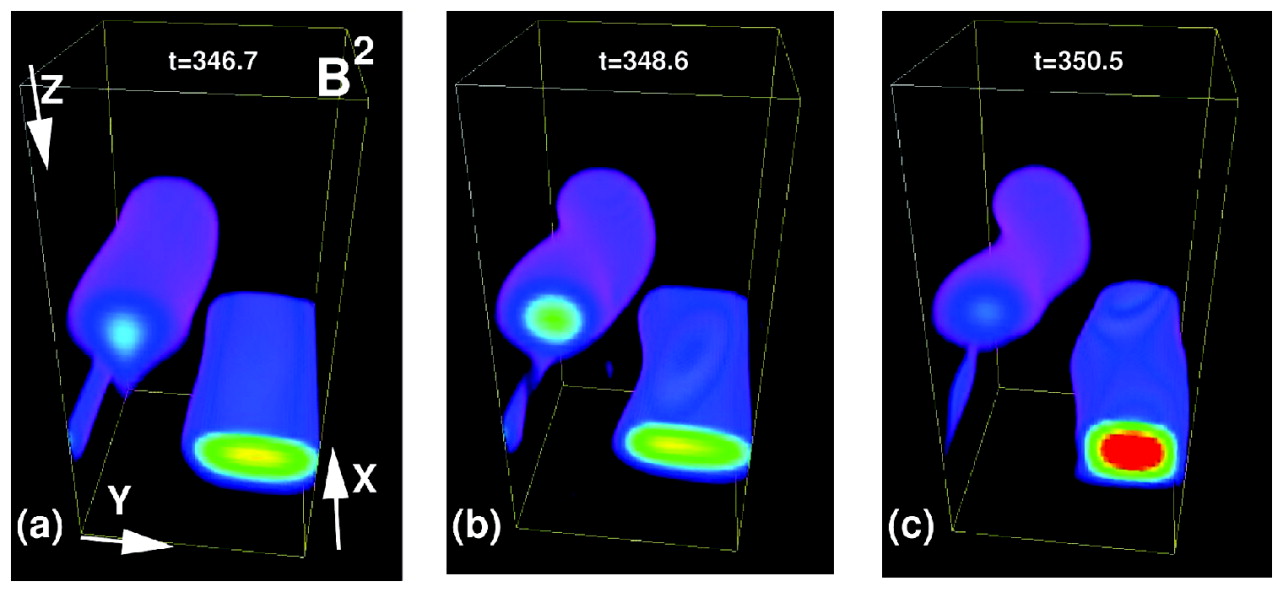

Breaking of the x‐invariance by magnetically induced KH instabilities. This figure shows volume renderings of B² from case VA3 at ﹩t=346.7﹩, 348.6, 350.5. The emerging magnetic structure can be seen to be twisted by the action of KH modes as it rises out of the localized shear zone.
