An 800 Myr-old Impact Shower on the Terrestrial Planets from the Breakup of the Eulalia Parent Body

  • Authors: William F. Bottke, David Vokrouhlický, Melissa Dykhuis, Nicolle Zellner

William F. Bottke et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

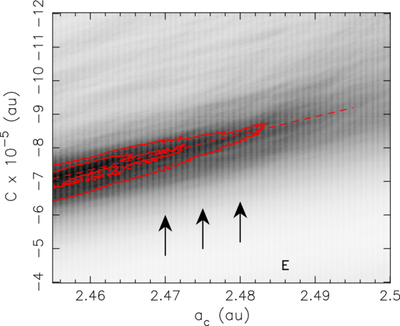

Caption: Figure 4.

The value of the Eulalia cluster contrast function r(CacC) in the (acC) space for ΔC = 1.5 × 10−5 au. Darker pixels correspond to larger r-values with a maximum of ≃7.2. Red isolines show values r = (7.1, 6.1, 5.1), and the dashed line is the correlation axis of ac and C with close r-values. The current proper semimajor axis of (495) Eulalia is indicated by label E, and the arrows show our tested Eulalia family realizations, including the canonical choice of ac = 2.475 au. I.e., both K. J. Walsh et al. (2013) and D. Vokrouhlický et al. (2016) argued that (495) Eulalia might have been plausibly transported to its current semimajor axis from values between ≃2.475 and ≃2.48 au via Yarkovsky drift and chaotic diffusion near the J3:1.
