Formation and Trapping of CO2 from Cryogenic Irradiation of Carbonate

  • Authors: Ashma Pandya, Swaroop Chandra, Michael E. Brown

Ashma Pandya et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

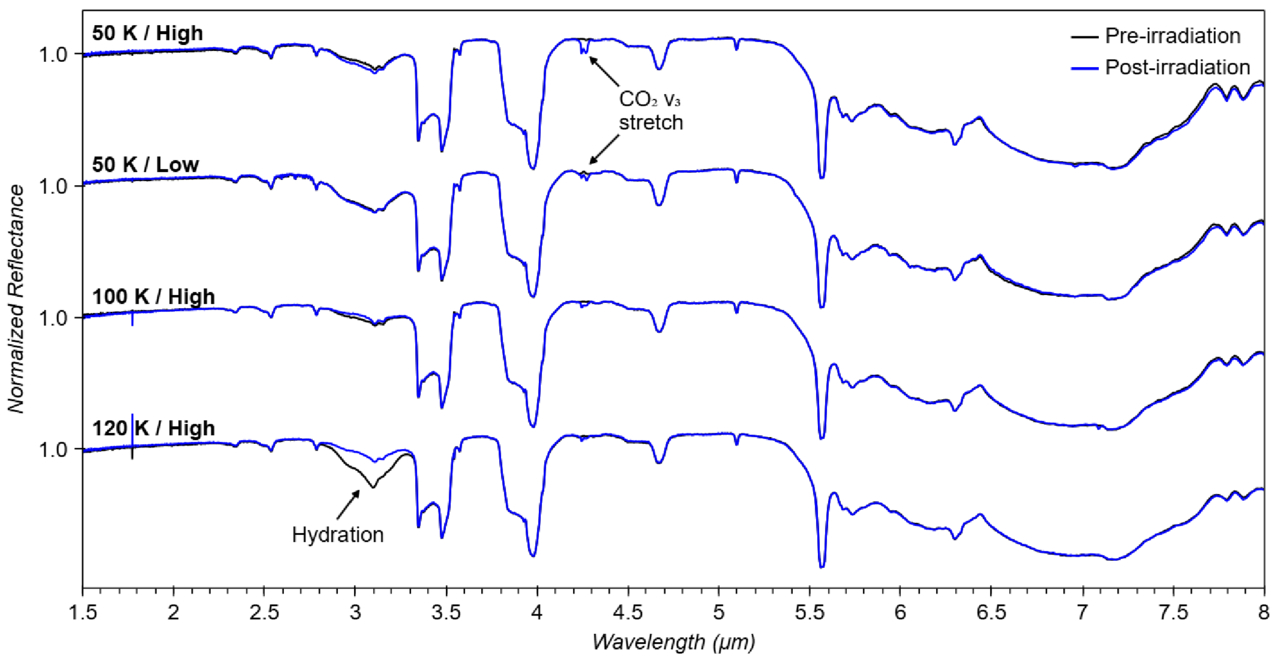

Caption: Figure 1.

Normalized FTIR spectra of CaCO3 at 50, 100, and 120 K, before and after 6 hr of irradiation with 10 keV electrons at 4244 nA cm−2 (high flux) and 1415 nA cm−2 (low flux). Spectra are largely unchanged upon irradiation except near 4.26 μm, where a characteristic CO2 ν3 absorption doublet emerges. Weakening of the 3 μm feature indicates dehydration.
