Formation and Trapping of CO2 from Cryogenic Irradiation of Carbonate

  • Authors: Ashma Pandya, Swaroop Chandra, Michael E. Brown

Ashma Pandya et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

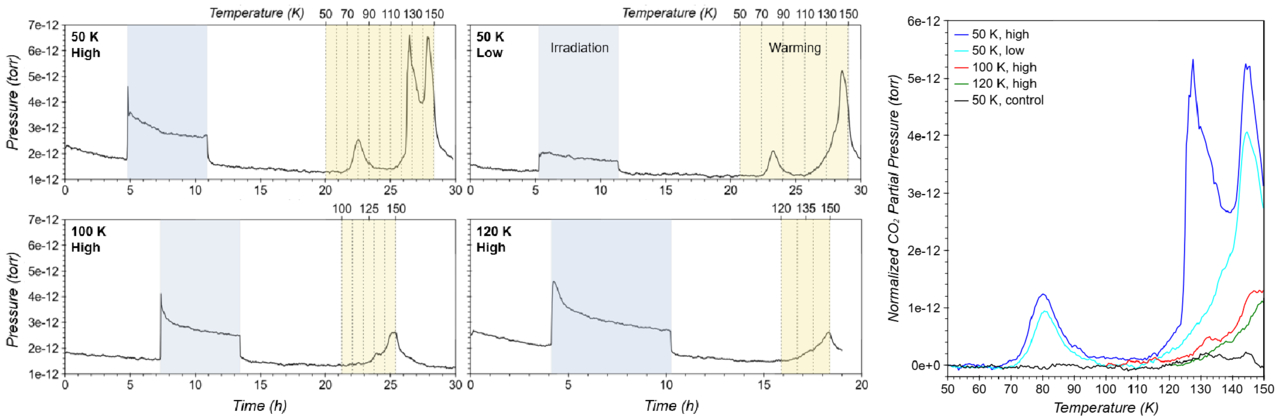

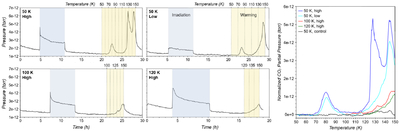

Caption: Figure 4.

Temperature programmed CO2 desorption from irradiated CaCO3, monitored via RGA. Traces represent the CO2 partial pressure, obtained as the sum of signals at m/z 43–45. The shaded blue region denotes the irradiation period; the beige region corresponds to postirradiation warming at 0.2 K minute−1. Irradiation induces an immediate rise in CO2 partial pressure, indicating radiolysis. Upon warming, the 50 K samples show a CO2 release near 80 K, consistent with sublimation of crystalline CO2, absent in the high-temperature experiments. The 50 K, high-flux sample shows two desorption features above 120 K, indicating at least two trapping states. At high temperatures or under low flux, CO2 release initiates near 130 K.
