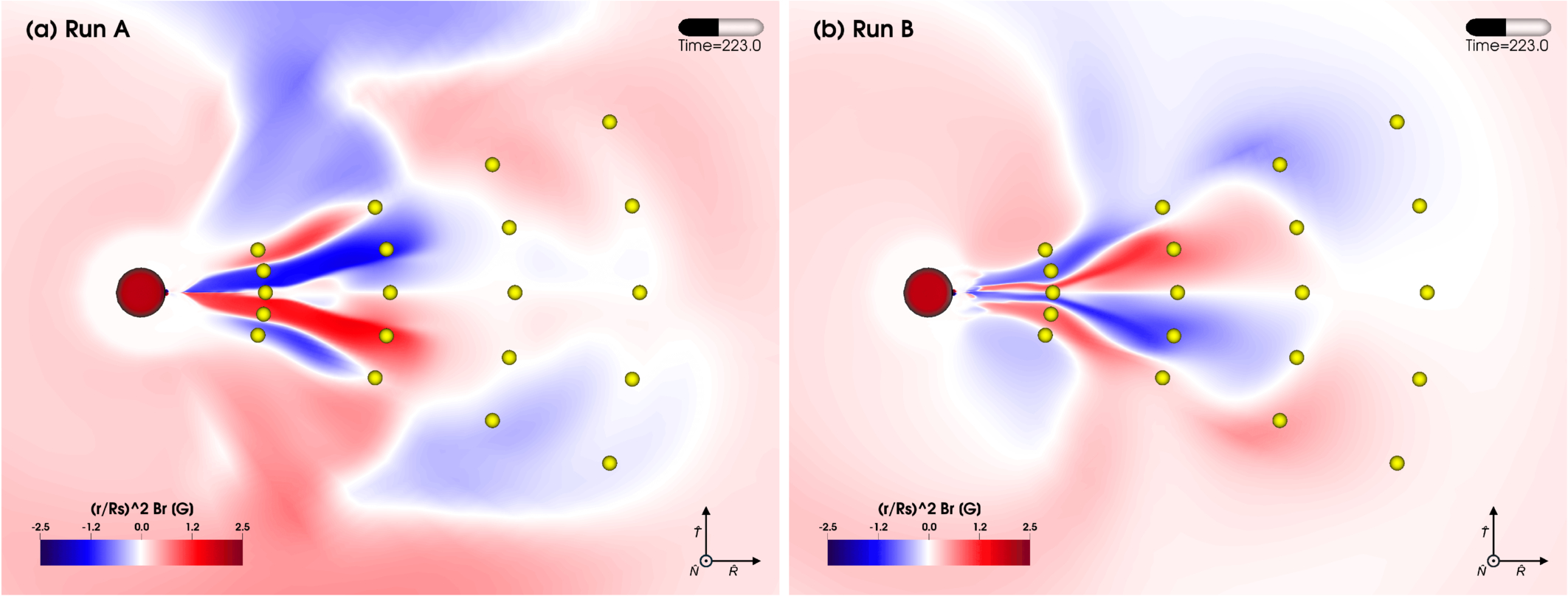

Snapshot (at t ≃ 9.5 hr) of the scaled radial magnetic field component (B_R) for (a) Run A and (b) Run B projected onto the equatorial plane as seen from above the solar north pole. The synthetic spacecraft that cross the equatorial plane are represented by yellow spheres. The animated version of this figure shows the evolution of B_R throughout the temporal domain of the simulations from 0 to 20 hr, corresponding to code units from 200.0 to 250.0 in increments of 0.5 (12 minutes). The animation has a total real-time duration of 7 s.
