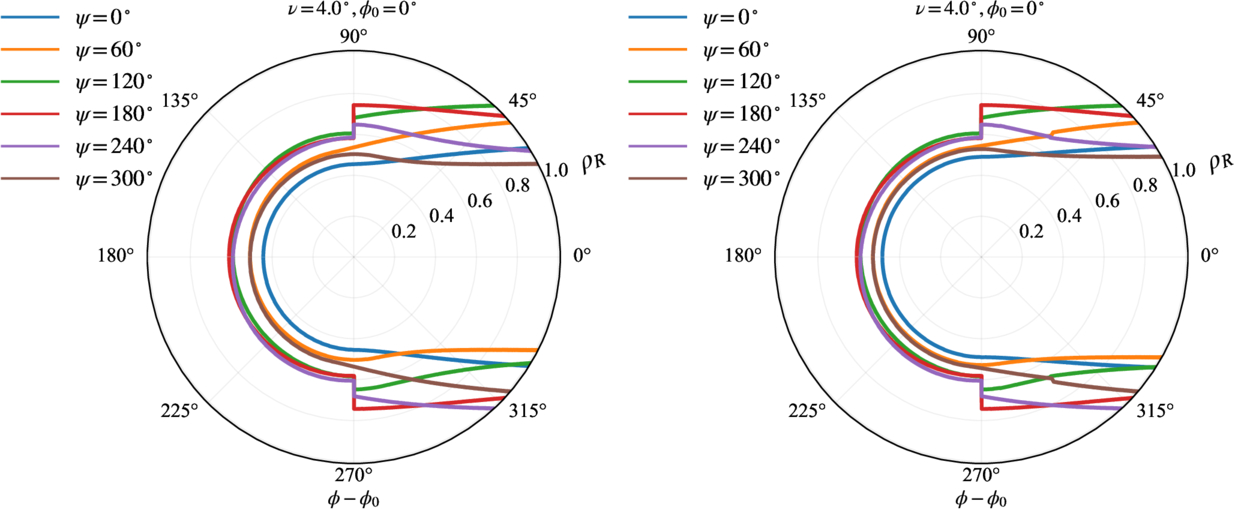

Shadow condition (Equation (28)) shown for muons with different normalized impact distances ρ_R, at fixed impact angle ϕ₀, for the parameters of an SCT. The left panel neglects the effect of the M2 baffles, while the right panel includes their contribution using Equation (32). Here, the muon has a fixed inclination angle of ν = 4°, with varying azimuthal projections ψ. See also Figure 5.
