Using Muon Rings for the Calibration of the Cherenkov Telescope Array: An Analytical Solution for the Dual-mirror Telescope Using Vector Geometry

  • Authors: Markus Gaug, Víctor Giráldez-Segalàs, Fiona Redmen

Markus Gaug et al 2026 The Astrophysical Journal Supplement Series 285 .

  • Provider: AAS Journals

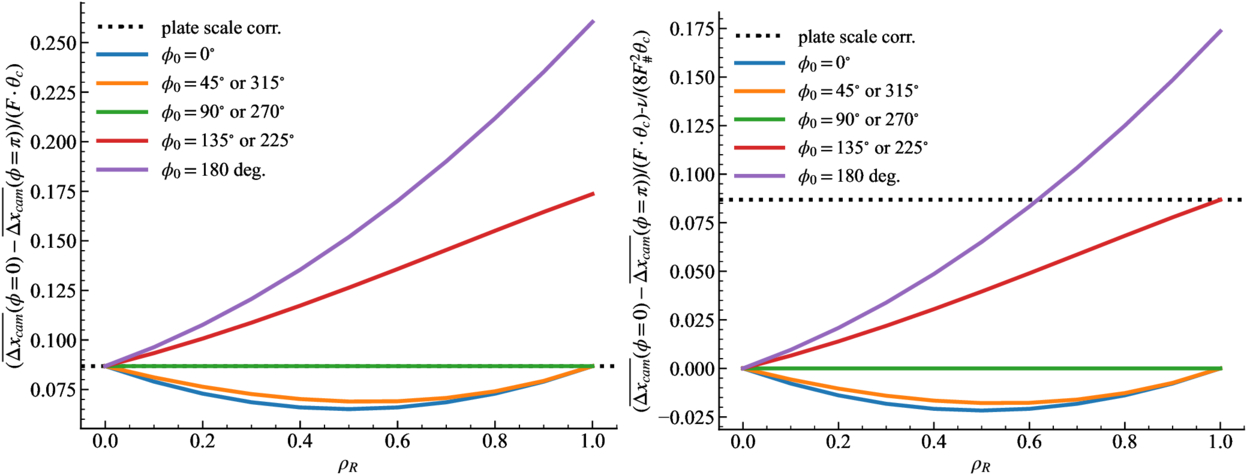

Caption: Figure 3.

Tangential-coma-induced bias between the outer and inner edges of the muon ring for a parabolic telescope with f# = 1.2, muon Cherenkov angle θc = 1°, and inclination angle ν = 1°, shown without plate-scale correction (left) and with plate-scale correction (right). The expected bias for parallel light, typically used for a plate-scale correction, is indicated by the black dotted line. Note the different vertical-axis scales in the two panels.
