Using Muon Rings for the Calibration of the Cherenkov Telescope Array: An Analytical Solution for the Dual-mirror Telescope Using Vector Geometry

Authors: Markus Gaug, Víctor Giráldez-Segalàs, Fiona Redmen

Markus Gaug et al 2026 The Astrophysical Journal Supplement Series 285 .

Provider: AAS Journals

Caption: Figure 4.

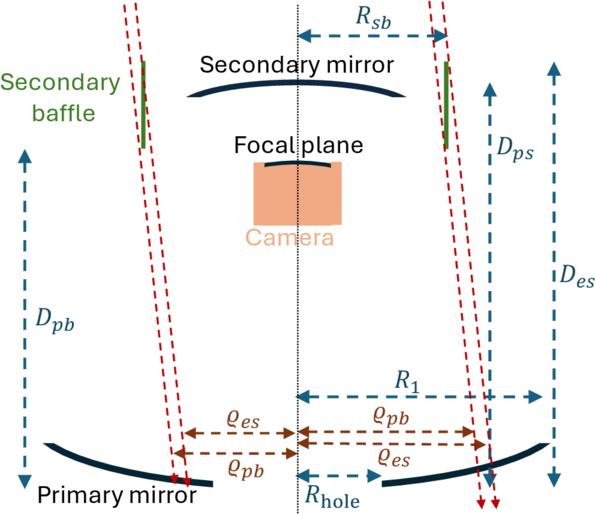

Schematic illustration of the parameters used in this work for the dual-mirror telescope. The red arrows denote limiting cases of muons traversing the protective baffles of the secondary mirror.
