Quasiperiodic Eruptions from Stellar-mass Black Holes Impacting Accretion Disks in Galactic Nuclei

  • Authors: Kun Liu, 坤 刘, Shang-Fei Liu, 尚飞 刘, Zhen Pan, 震 潘, Hongping Deng, 洪平 邓, Rongfeng Shen, 荣锋 申, Cong Yu, 聪 余

Kun Liu et al 2026 The Astrophysical Journal Letters 1006 .

  • Provider: AAS Journals

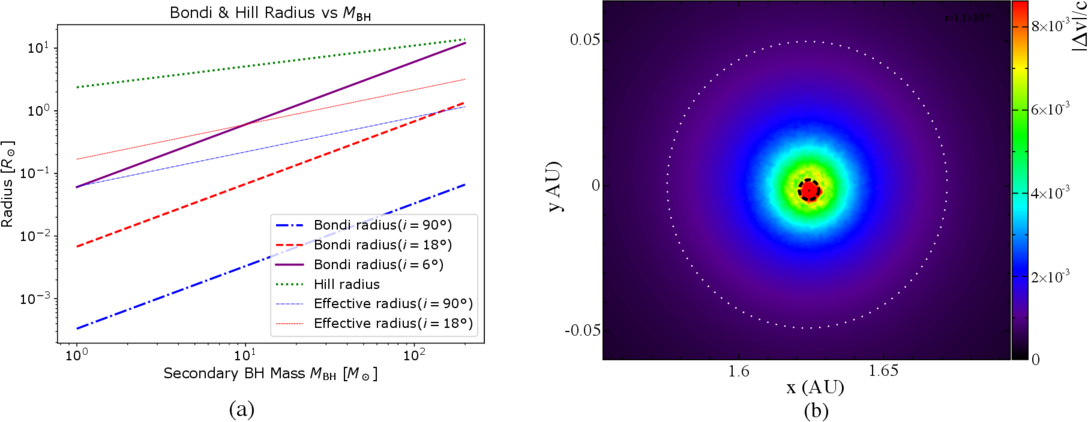

Caption: Figure 8.

(a) Comparison of Bondi and Hill radii under different impactor masses and orbital inclinations, for a central black hole mass MBH = 1.05 × 106 M and a semimajor axis a = 1.62 au ( ≈ 160 Rg). Effective radii i = π/10 and i = π/2 are shown for reference; (b) Face-on view of the ∣Δv∣ distribution from the bh_i18_sigma1e6 simulation at the moment when the black hole passes through the disk midplane. The white dotted circle denotes the Hill radius, and the black dashed circle shows the Bondi radius for reference.
