A Dense Molecular Ringlike Structure in Gaseous CO Depletion Region G34.74−0.12

  • Authors: Shuting Lin, Siyi Feng, Fengwei Xu, Ke Wang, Patricio Sanhueza, Junzhi Wang, Zhi-Yu Zhang, Yichen Zhang, Kaho Morii, Hauyu Baobab Liu, Sheng-Yuan Liu, Lile Wang, Giovanni Sabatini, Hui Li, Willem Baan, Zhi-Kai Zhu, Shanghuo Li

Shuting Lin et al 2025 The Astrophysical Journal Letters 992 .

  • Provider: AAS Journals

Caption: Figure D2.

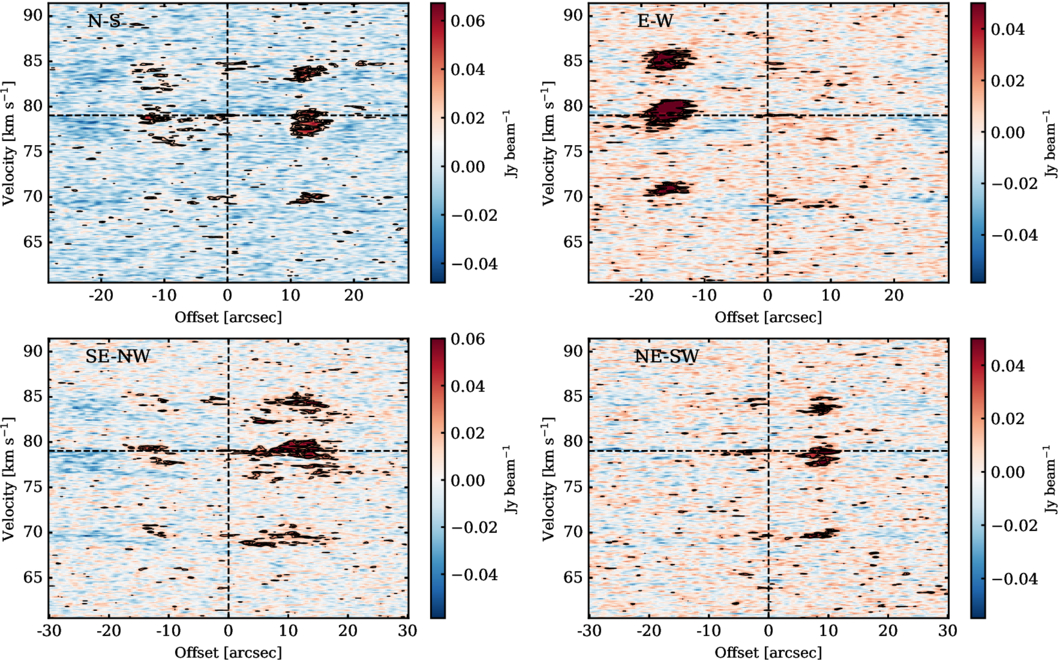

PV diagrams of N2H+ (1–0) along four cuts with a P.A. of 0°, 45°, 90°, and 135° (labeled in Figure 1) of the ringlike structure. Contour levels are set at 3σ, 4σ, and 5σ, where σ = 0.008 Jy beam−1.
