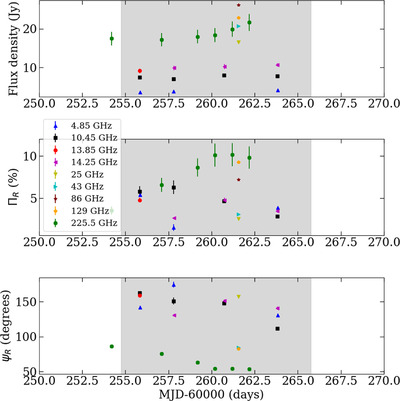

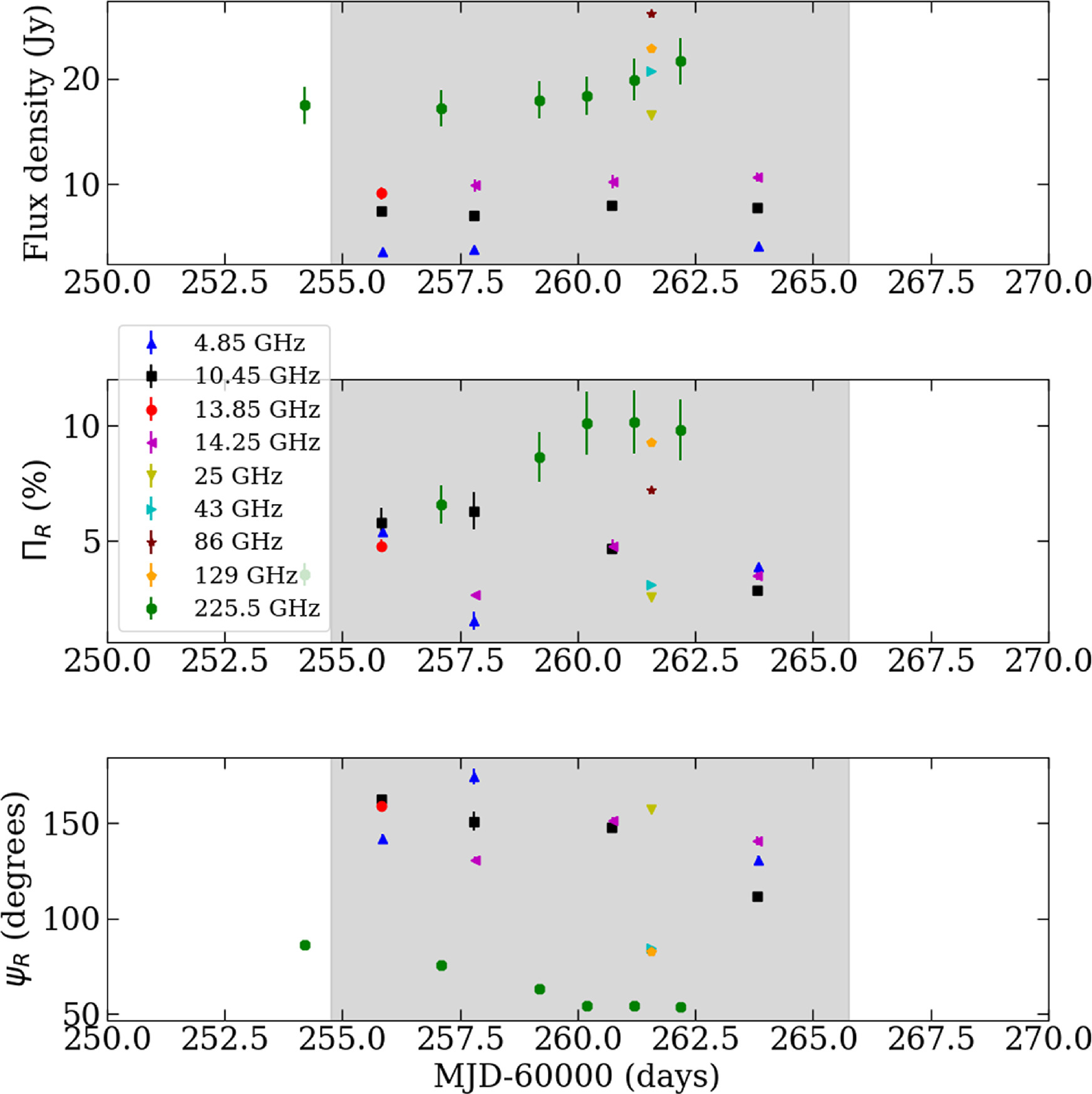

Caption: Figure 8.
Short millimeter wavelength and radio polarization measurements during the IXPE observation. The top panel shows the flux density, the middle panel the polarization degree, and the bottom panel the polarization angle. The gray shaded area marks the duration of the IXPE observation. The different radio frequencies are marked with different symbols and colors as shown in the legend. The error bars correspond to the 68% (1σ) confidence level.
