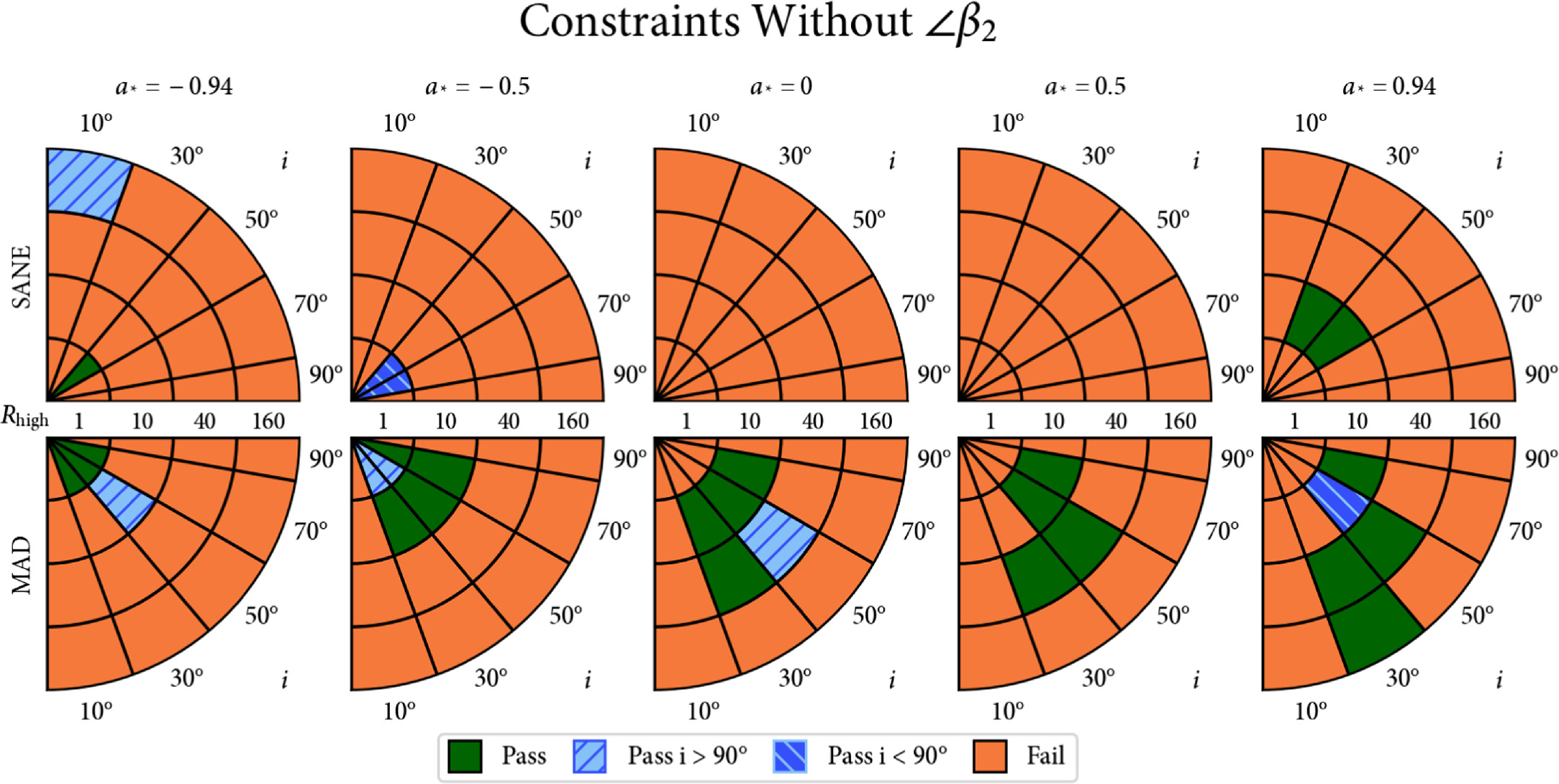

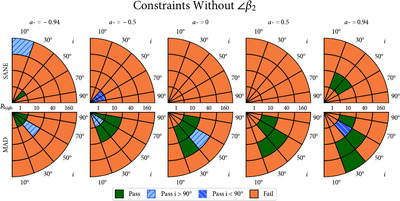

Caption: Figure 6.
Combined polarimetric constraints on the GRMHD model library excluding ∠β 2. Orange models fail, green models pass at both the given and its supplementary angle, and blue regions only pass with the given or supplementary angle as indicated. SANE models are plotted on the top half, and MAD models are plotted on the bottom half. Different columns correspond to different spins from −0.94 to 0.94. Within each wedge, the radial direction corresponds to R high and the azimuthal direction corresponds to observer inclination.
