Molecular Similarity and Water Diversity in Coeval Binary Disks: JWST/MIRI Observations of Sz 65 and Sz 66

Authors: Jinghuai Yao, Ke Zhang, Andrea Banzatti, Naman S. Bajaj, Ilaria Pascucci, James Miley, Geoffrey A. Blake, Colette Salyk, John M. Carpenter, Paola Pinilla, Lucas A. Cieza, Miguel Vioque, Benoît Tabone

Jinghuai Yao et al 2026 The Astrophysical Journal 1005 .

Provider: AAS Journals

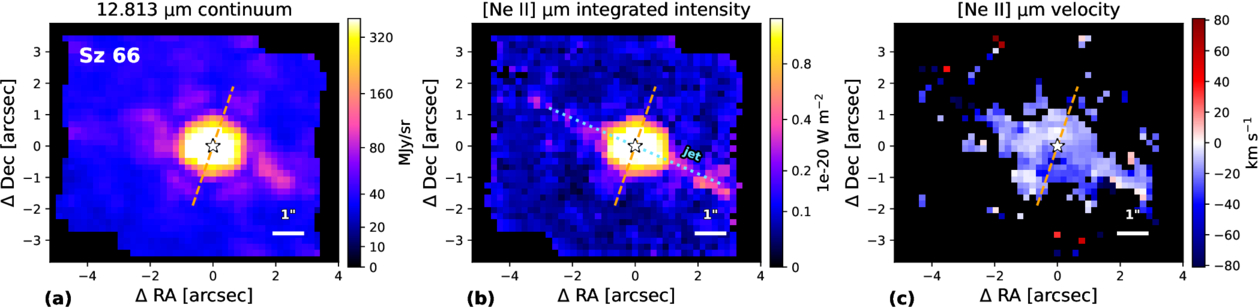

Caption: Figure 14.

(a) The line-subtracted continuum, (b) line intensity, and (c) Doppler velocity of the extended [Ne II] emission of the secondary (Sz 66). A jet feature (cyan) perpendicular to the disk’s major axis is tentatively detected.
