Analysis of Solar Eruptions Deflecting in the Low Corona: Influence of the Magnetic Environment

  • Authors: Abril Sahade, Angelos Vourlidas, Cecilia Mac Cormack

Abril Sahade et al 2025 The Astrophysical Journal 978 .

  • Provider: AAS Journals

Caption: Figure 4.

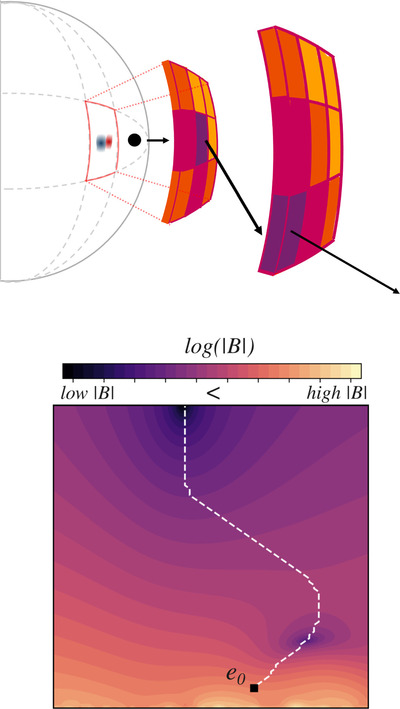

Upper panel: scheme of the voxel selection for the “gradient” path. From an initial position e0 (black dot), the nine upper voxels are considered and the one with minimal magnetic energy (the darker one) is selected. From that position, the next nine upper voxels are considered to trace the “gradient” path. Lower panel: for simplicity, an example of the gradient path in a bidimensional magnetic field B is given. The white dashed line indicates the “gradient” path from the initial position e0 (black square). The color scale indicates a lower magnetic field magnitude when darker (and purple) and a higher ∣B∣ when lighter (and yellow).
