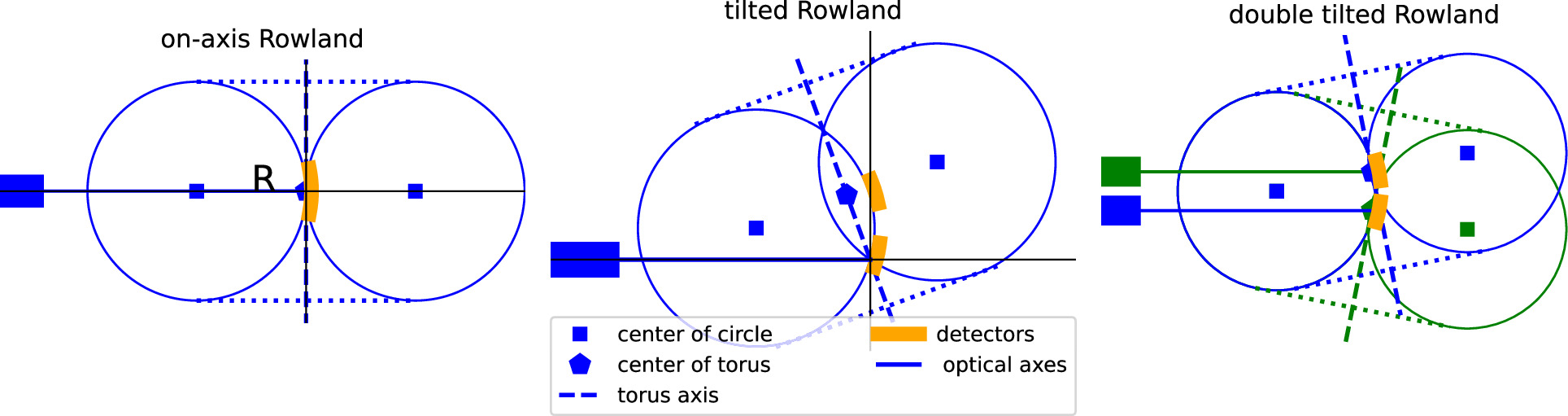

Left: Sketch of the on-axis Rowland geometry in the plane of the optical axis and the symmetry axis of the torus. Photons arrive from the left. Center: Tilted Rowland torus. The optical axis of the blue channel is offset from the center of the Rowland circle, but intersects the symmetry axis of the torus in the focal point F.Right: Layout with two Rowland tori, tilted in opposite direction. In the plane spanned by both optical axes (which are parallel) and the symmetry axis of the tori, the two tori overlap in exactly one circle, the Rowland circle. See Figure 2 for a more detailed explanation.
