Laboratory Study of the Torus Instability Threshold in Solar-relevant, Line-tied Magnetic Flux Ropes

Authors: Andrew Alt, Clayton E. Myers, Hantao Ji, Jonathan Jara-Almonte, Jongsoo Yoo, Sayak Bose, Aaron Goodman, Masaaki Yamada, Bernhard Kliem, and Antonia Savcheva

2021 The Astrophysical Journal 908 41.

Provider: AAS Journals

Caption: Figure 8.

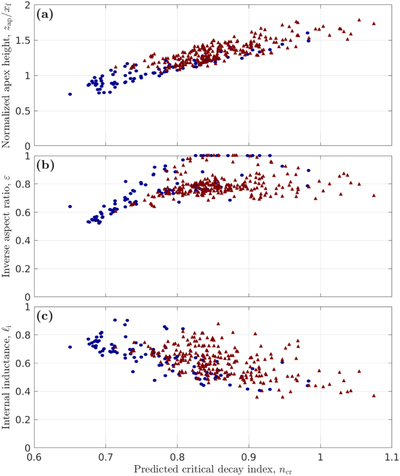

Scatter plot of the dimensionless, experimental parameters used in the calculation of ﹩{n}_{\mathrm{cr}}^{}﹩, (a) z_ap/x_f, (b) ε, and (c) ℓ_i, compared to the predicted ﹩{n}_{\mathrm{cr}}^{}﹩ value. The shots represented here are the same as in Figure 6 and are limited in edge safety factor, q_a < 0.67.
