Protostellar Jets in Star Cluster Formation and Evolution. I. Implementation and Initial Results

  • Authors: Sabrina M. Appel, Blakesley Burkhart, Mordecai-Mark Mac Low, Eric P. Andersson, Claude Cournoyer-Cloutier, Sean Lewis, Stephen L. W. McMillan, Brooke Polak, Simon Portegies Zwart, Aaron Tran, Maite J. C. Wilhelm

Sabrina M. Appel et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

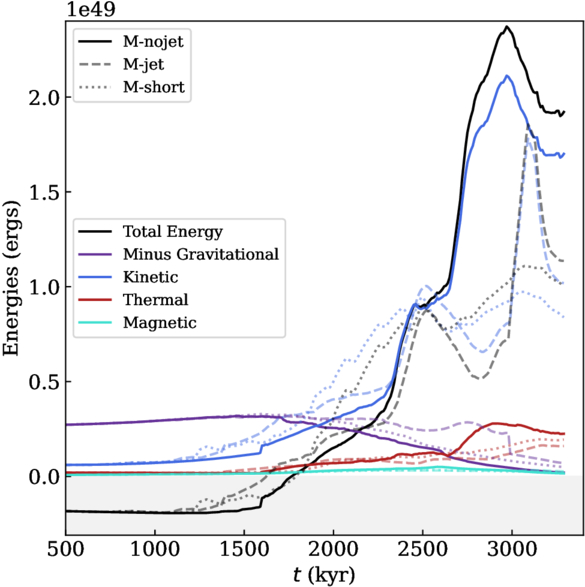

Caption: Figure 10.

A comparison of different forms of energy, as in Figure 9, for the three medium clouds. The run without jets (M-nojet) is shown with solid lines, while the two runs with jets (M-jet and M-short) are shown with dashed and dotted lines. Note that the purple line plots the negative of the gravitational energy while the total energy accounts for the sign of the gravitational energy. Negative values implying gravitational boundedness are shaded gray.
