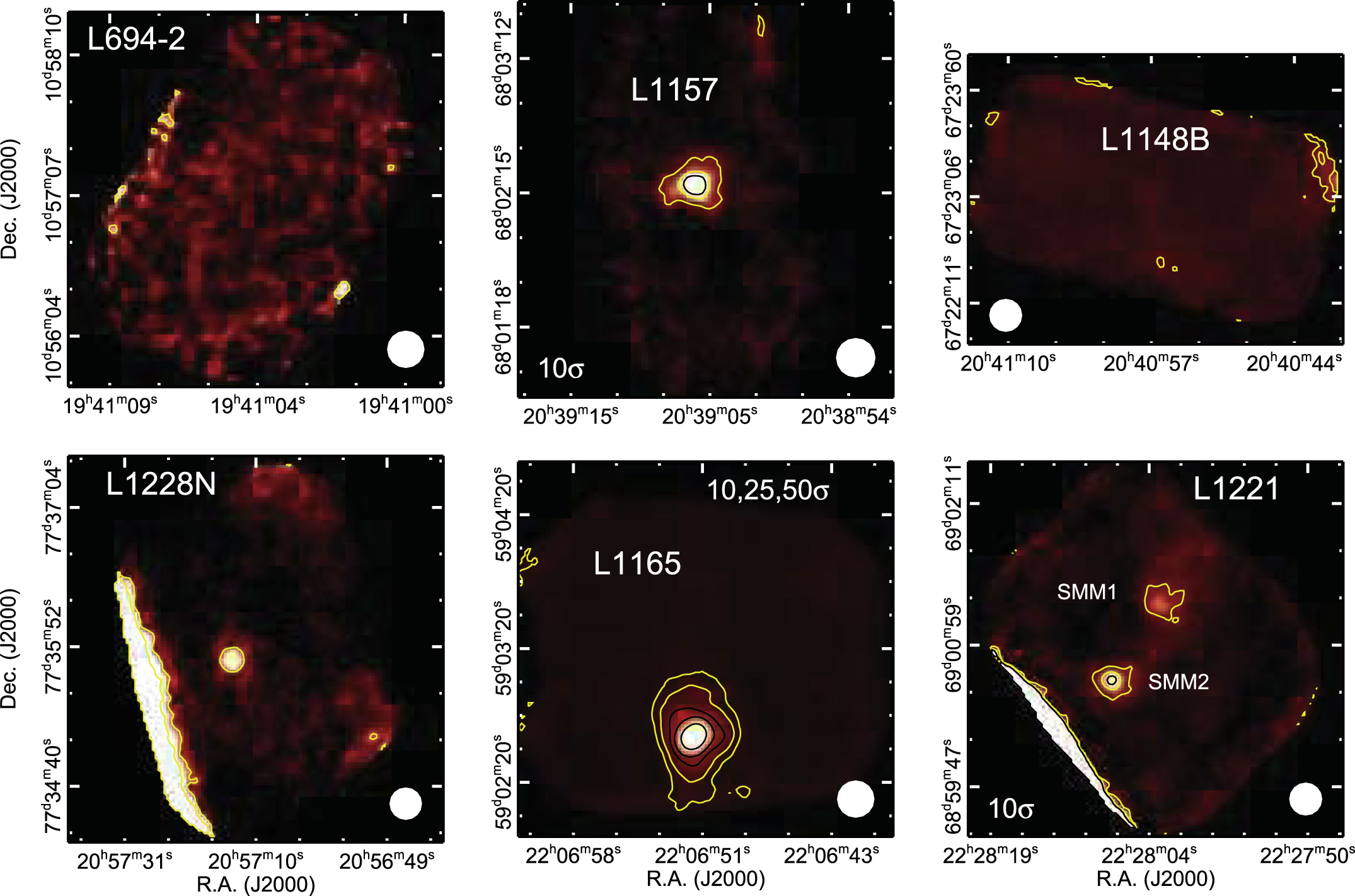

Same as Figure 32 (Lissajous observations of targets observed in both models), except for L694-2 (1σ = 0.257 Jy beam⁻¹, min = −0.3 Jy beam⁻¹, max = 1.1 Jy beam⁻¹), L1157 (1σ = 0.631 Jy beam⁻¹, min = −0.3 Jy beam⁻¹, max = 5.0 Jy beam⁻¹), L1148B (1σ = 0.063 Jy beam⁻¹, min = −0.3 Jy beam⁻¹, max = 1.2 Jy beam⁻¹), L1228N (1σ = 1.023 Jy beam⁻¹, min = −0.3 Jy beam⁻¹, max = 4.8 Jy beam⁻¹), L1165 (1σ = 0.087 Jy beam⁻¹, min = −0.4 Jy beam⁻¹, max = 3.9 Jy beam⁻¹), and L1221 (1σ = 0.214 Jy beam⁻¹, min = −0.2 Jy beam⁻¹, max = 1.9 Jy beam⁻¹). The data behind this figure is provided as tar.gz FITS files.
