Tracking Halo Orbits and Their Mass Evolution around Large-scale Filaments

  • Authors: Hannah Jhee, Hyunmi Song, Rory Smith, Jihye Shin, Inkyu Park, Clotilde Laigle

Hannah Jhee et al 2022 The Astrophysical Journal 940 .

  • Provider: AAS Journals

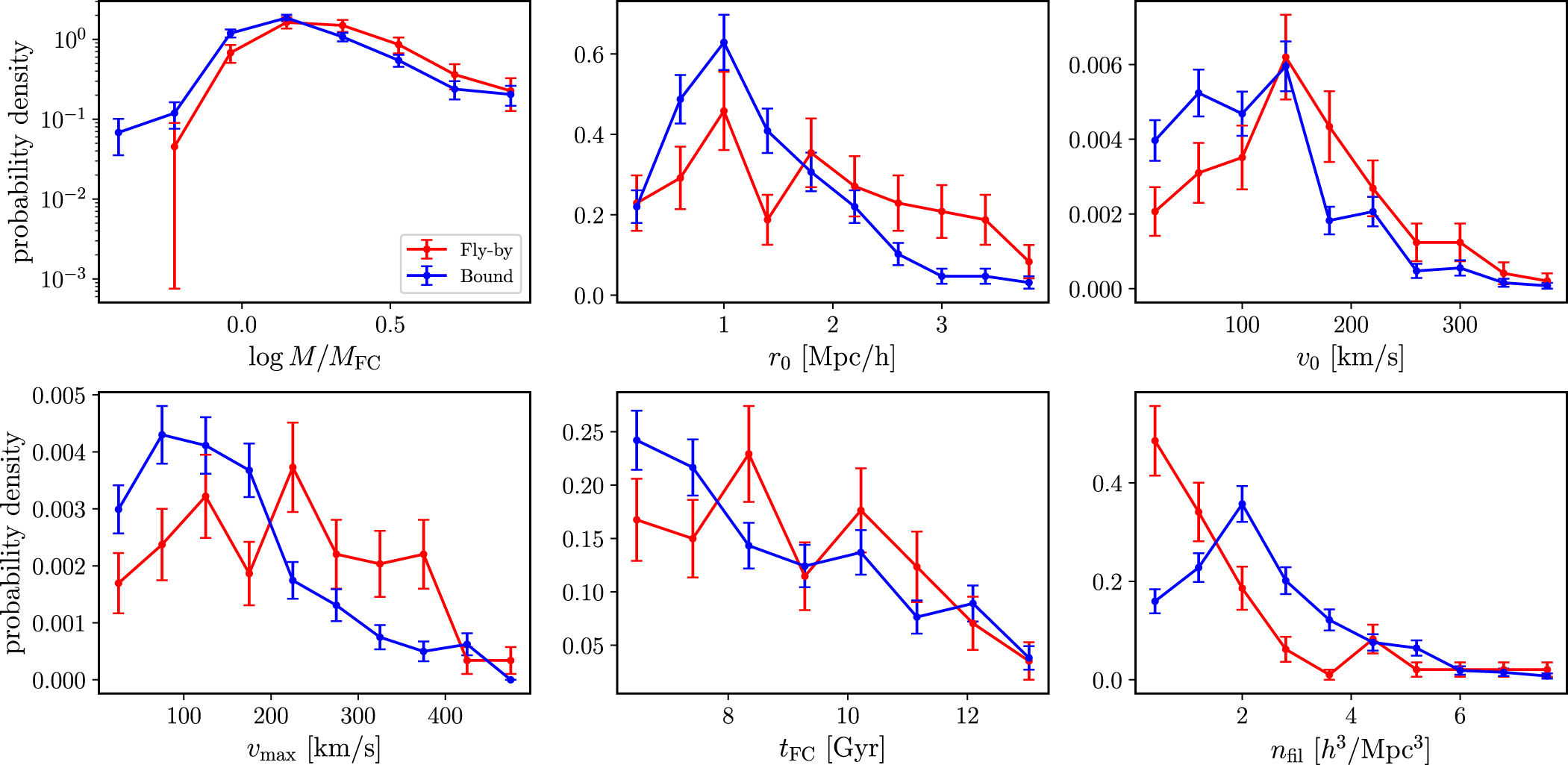

Caption: Figure 7.

The distributions of current halo mass with respect to the mass at first crossing (M now/M FC), initial distance (r 0), initial velocity (v 0), maximum velocity (﹩{v}_{\max }﹩), time since first crossing (t FC), and filament density (n fil) of 335 bound (blue) and 121 fly-by (red) halos. The y-axis represents a probability density. The errors are statistical errors.
