Formation of the SDC13 Hub-filament System: A Cloud–Cloud Collision Imprinted on the Multiscale Magnetic Field

Authors: Jia-Wei Wang, Patrick M. Koch, Ya-Wen Tang, Gary A. Fuller, Nicolas Peretto, Gwenllian M. Williams, Hsi-Wei Yen, Han-Tsung Lee, Wei-An Chen

Jia-Wei Wang et al 2022 The Astrophysical Journal 931 .

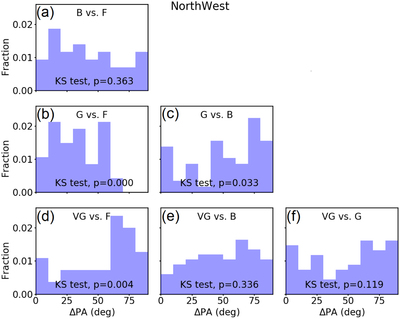

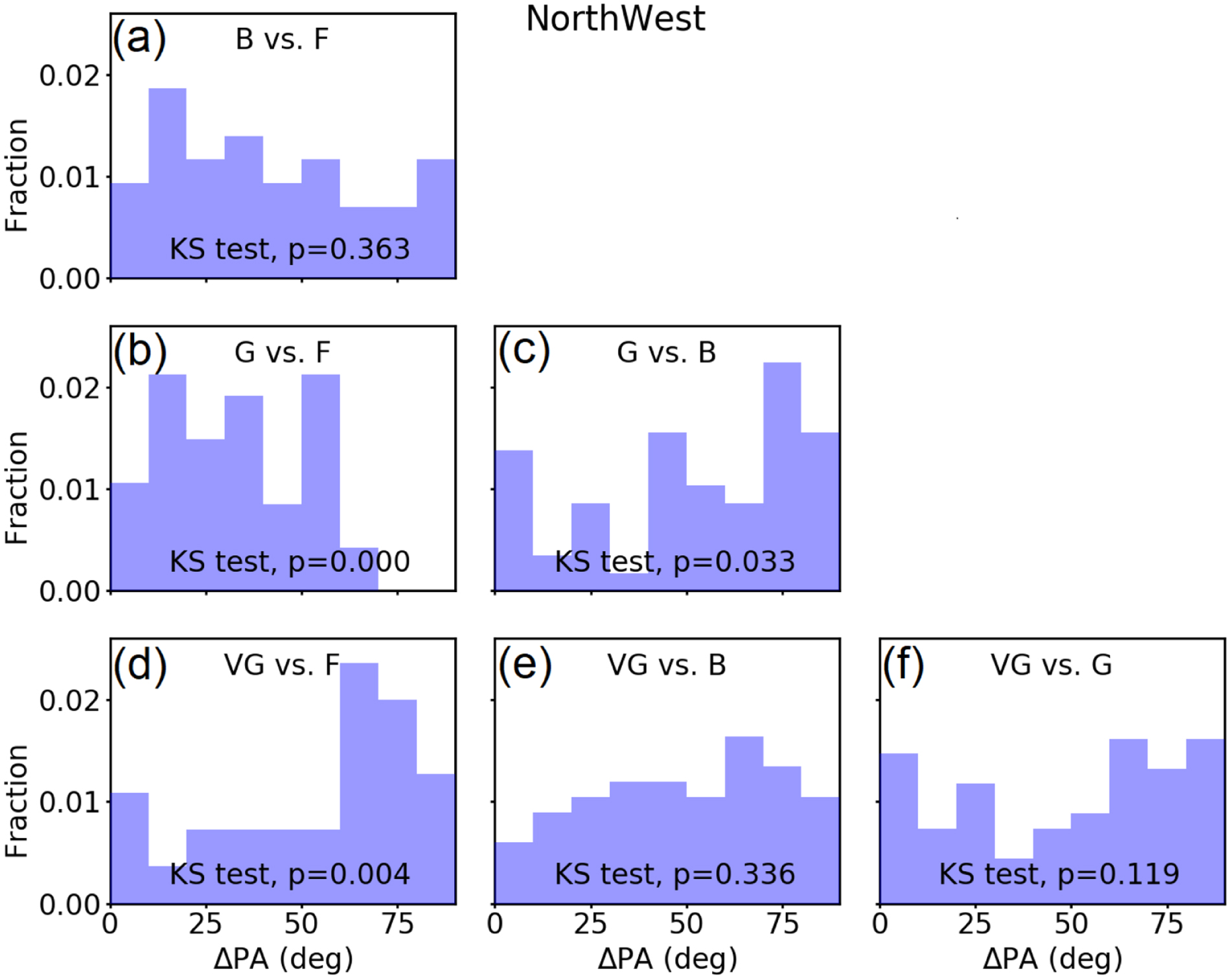

Caption: Figure 23.

Histograms of relative orientations among filaments, magnetic field, local gravity, and local velocity gradients in the northwestern filament region.
