Figure 6 from CURRENT SHEET STRUCTURES OBSERVED BY THE TESIS EUV TELESCOPE DURING A FLUX ROPE ERUPTION ON THE SUN

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

CURRENT SHEET STRUCTURES OBSERVED BY THE TESIS EUV TELESCOPE DURING A FLUX ROPE ERUPTION ON THE SUN

Authors: A. A. Reva, A. S. Ulyanov, and S. V. Kuzin

2016 The Astrophysical Journal 832 16.

Provider: AAS Journals

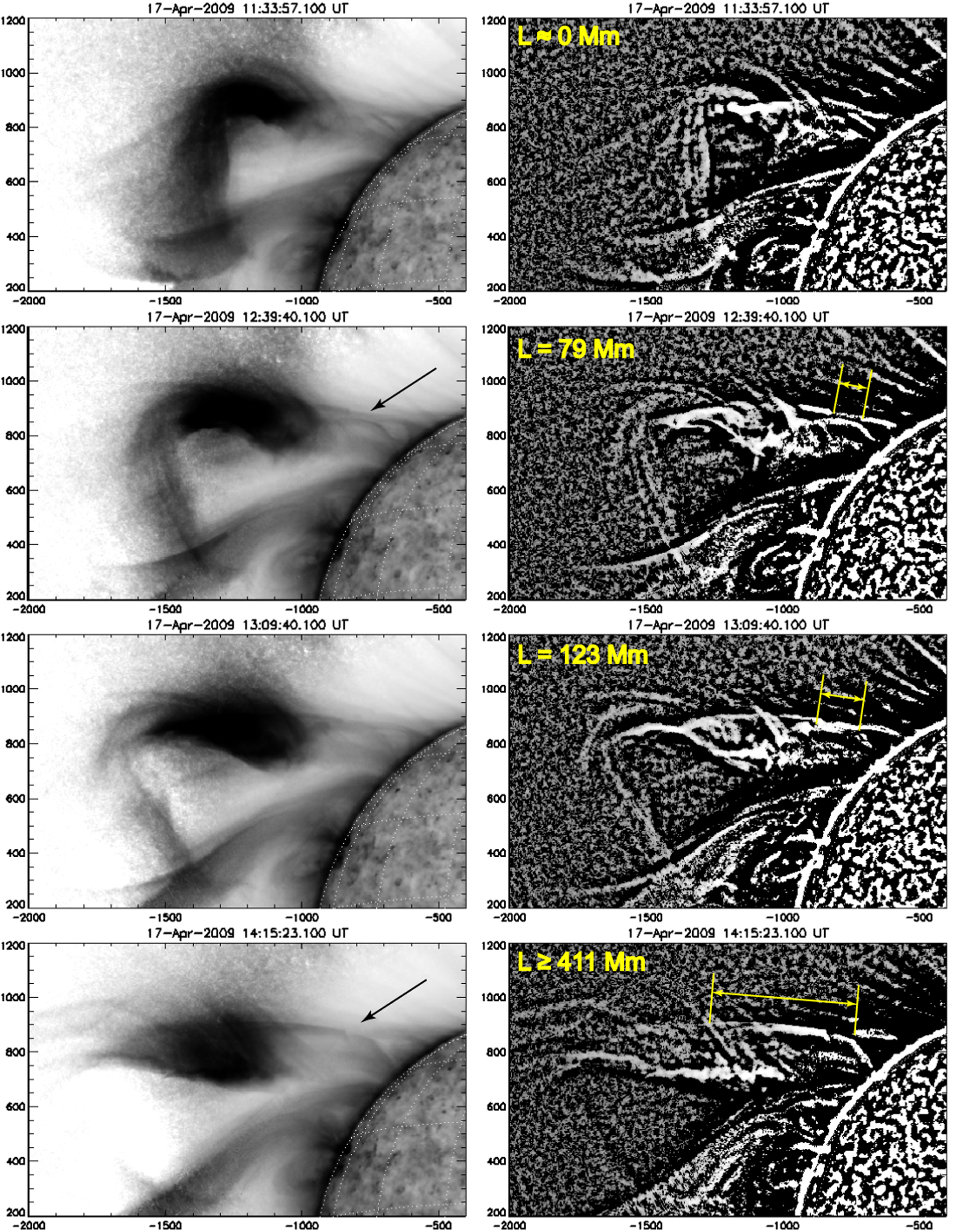

Caption: Figure 6.

Y-structure formation. Left: negative images (dark corresponds to high intensities, bright to low). Arrows indicate the Y-structure. Right: sharpened images. Yellow lines denote current sheet boundaries. Coordinates are measured in arcseconds.
