CURRENT SHEET STRUCTURES OBSERVED BY THE TESIS EUV TELESCOPE DURING A FLUX ROPE ERUPTION ON THE SUN

Authors: A. A. Reva, A. S. Ulyanov, and S. V. Kuzin

2016 The Astrophysical Journal 832 16.

Provider: AAS Journals

Caption: Figure 2.

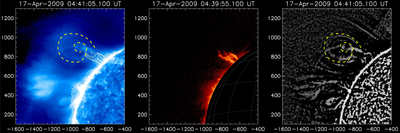

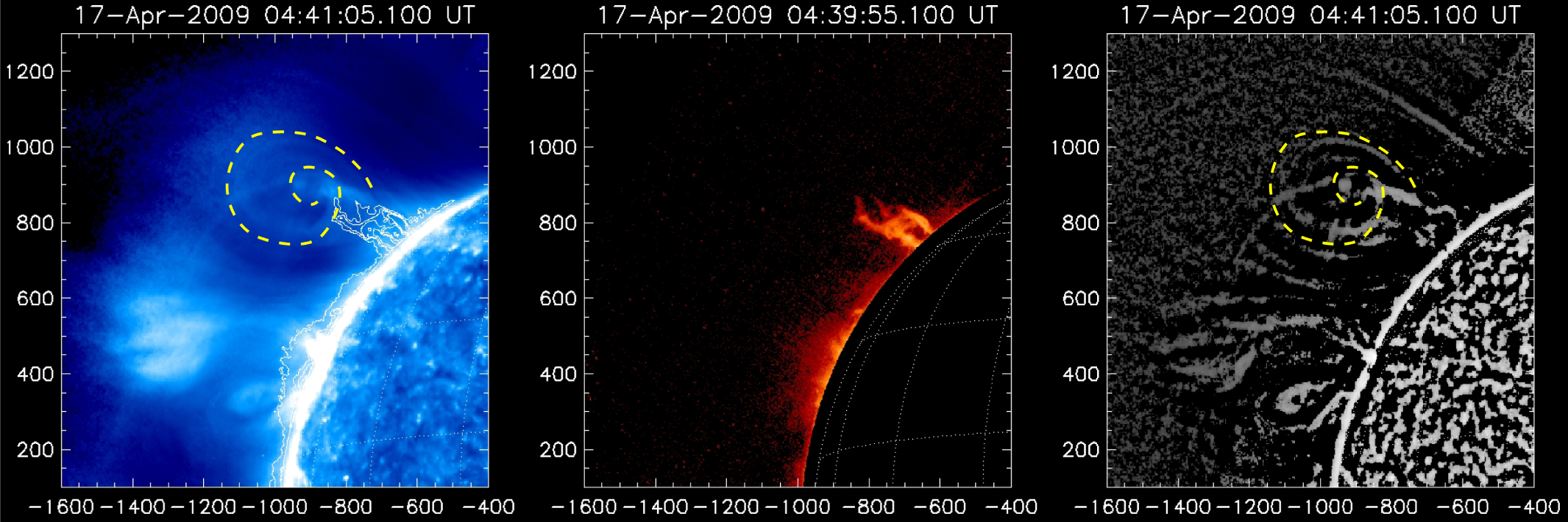

Left: TESIS Fe 171 Å image; middle: TESIS He 304 Å image; right: sharpened TESIS Fe 171 Å image. To improve the prominence visibility, we applied an artificial occulting disk to the He 304 Å image. The yellow dashed line marks the spiral structure. Coordinates are measured in arcseconds.
