Figure 5 from CURRENT SHEET STRUCTURES OBSERVED BY THE TESIS EUV TELESCOPE DURING A FLUX ROPE ERUPTION ON THE SUN

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

CURRENT SHEET STRUCTURES OBSERVED BY THE TESIS EUV TELESCOPE DURING A FLUX ROPE ERUPTION ON THE SUN

Authors: A. A. Reva, A. S. Ulyanov, and S. V. Kuzin

2016 The Astrophysical Journal 832 16.

Provider: AAS Journals

Caption: Figure 5.

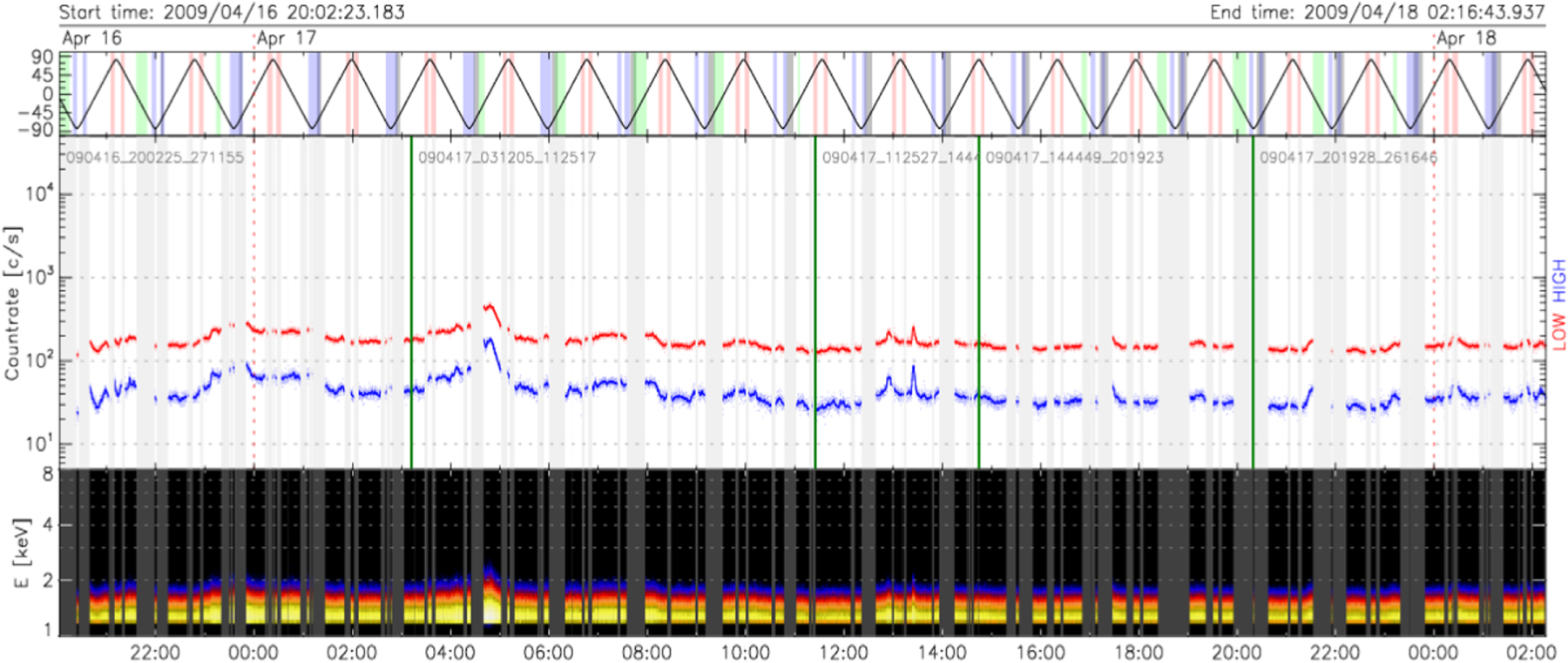

Sphinx countrates. Red: 1.2–1.5 keV energy range; blue: 1.5–15.0 keV energy range. Bottom panel: a dynamic Sphinx spectrum. Top panel: a spacecraft orbit latitude. The image was taken from http://www.cbk.pan.wroc.pl/?l=EN&act=6.
