RAPIDLY RISING TRANSIENTS IN THE SUPERNOVA—SUPERLUMINOUS SUPERNOVA GAP

Authors: Iair Arcavi, William M. Wolf, D. Andrew Howell, Lars Bildsten, Giorgos Leloudas, Delphine Hardin, Szymon Prajs, Daniel A. Perley, Gilad Svirski, Avishay Gal-Yam, Boaz Katz, Curtis McCully, S. Bradley Cenko, Chris Lidman, Mark Sullivan, Stefano Valenti, Pierre Astier, Cristophe Balland, Ray G. Carlberg, Alex Conley, Dominique Fouchez, Julien Guy, Reynald Pain, Nathalie Palanque-Delabrouille, Kathy Perrett, Chris J. Pritchet, Nicolas Regnault, James Rich, and Vanina Ruhlmann-Kleider

2016 The Astrophysical Journal 819 35.

Provider: AAS Journals

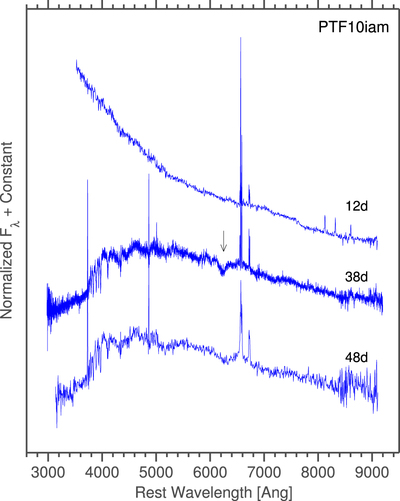

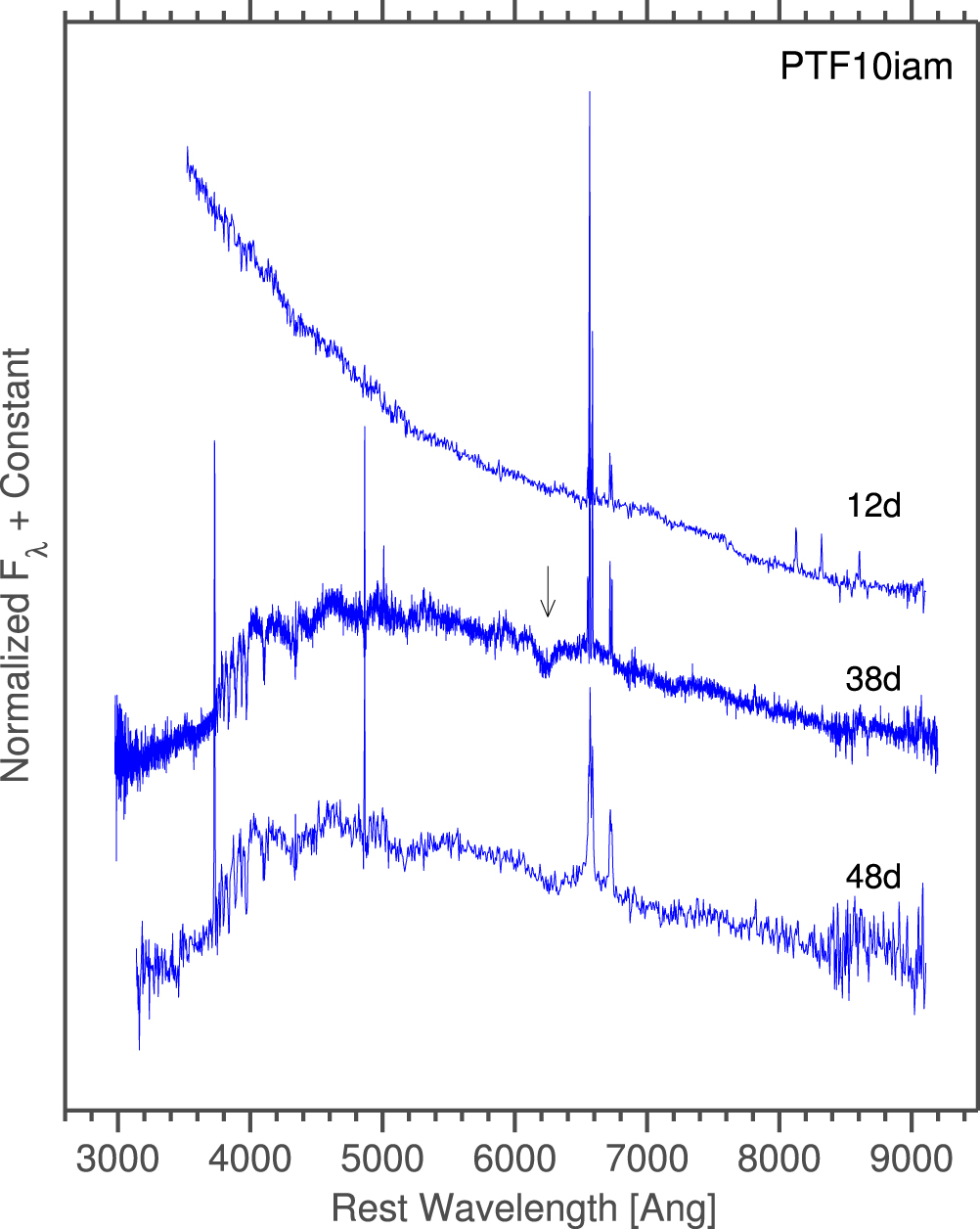

Caption: Figure 5.

Spectra of PTF10iam. Phases are shown in rest-frame days from explosion. The first spectrum is mostly a blue continuum, and the second spectrum displays broad Hα in emission as well as a notable absorption feature blueward of Hα (marked with an arrow). The last spectrum is heavily host-galaxy contaminated. The narrow emission and absorption features are from the host galaxy.
