Figure 10 from DISTRIBUTION AND MASS OF DIFFUSE AND DENSE CO GAS IN THE MILKY WAY

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

DISTRIBUTION AND MASS OF DIFFUSE AND DENSE CO GAS IN THE MILKY WAY

Authors: Julia Roman-Duval, Mark Heyer, Chris Brunt, Paul Clark, Ralf Klessen, and Rahul Shetty

2016 The Astrophysical Journal 818 144.

Provider: AAS Journals

Caption: Figure 10.

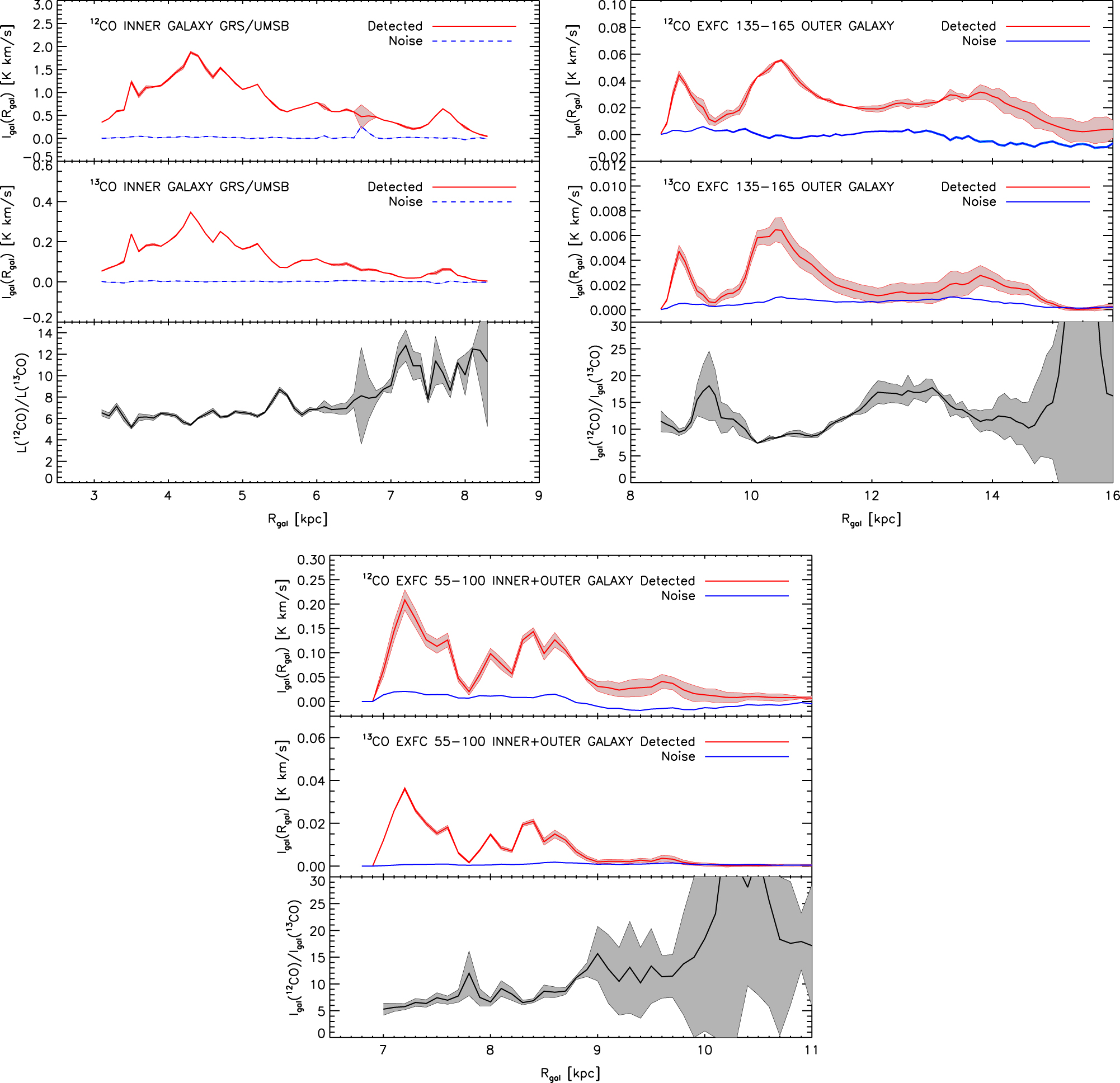

Detected (red) and noise (blue) ¹²CO and ¹³CO average Galactic integrated intensities as a function of Galactocentric radius (in bins of width 0.1 kpc), in the GRS+UMSB surveys (top left), in EXFC 135–165 (top right) and in EXFC 55–100 (bottom). The ratio of the ¹²CO and ¹³CO intensities is shown in the bottom sub-panels.
