THE NEOWISE-DISCOVERED COMET POPULATION AND THE CO + CO₂ PRODUCTION RATES

Authors: James M. Bauer, Rachel Stevenson, Emily Kramer, A. K. Mainzer, Tommy Grav, Joseph R. Masiero, Yan R. Fernández, Roc M. Cutri, John W. Dailey, Frank J. Masci, Karen J. Meech, Russel Walker, C. M. Lisse, Paul R. Weissman, Carrie R. Nugent, Sarah Sonnett, Nathan Blair, Andrew Lucas, Robert S. McMillan, and Edward L. Wright

2015 The Astrophysical Journal 814 85.

Provider: AAS Journals

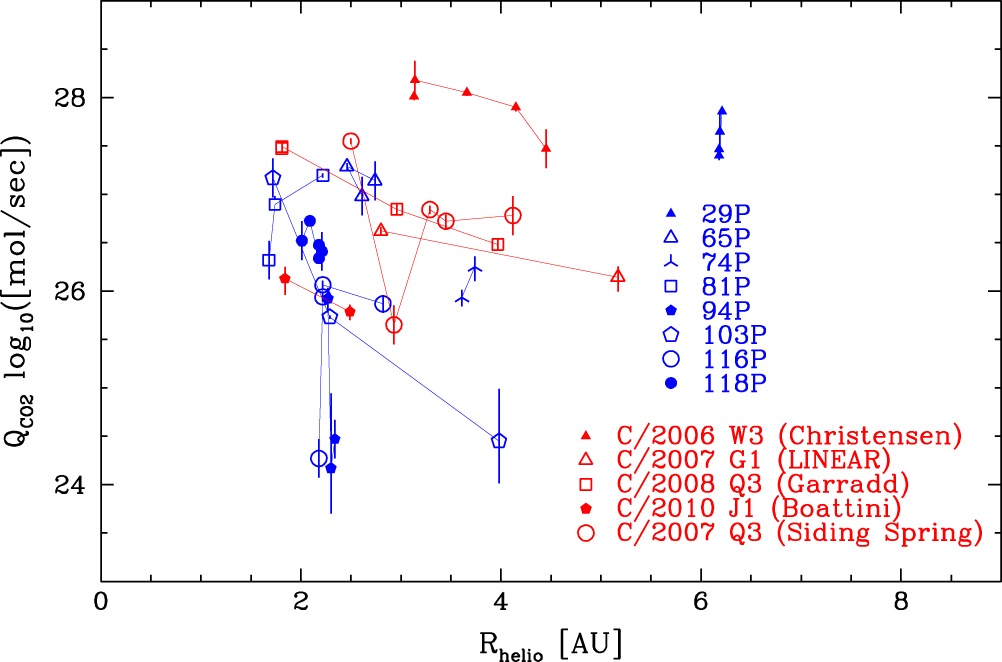

Caption: Figure 10.

Comparative production rates of CO₂ as a function of heliocentric distance in individual comets. SPCs (blue) and LPCs (red) observed by Akari (Ootsubo et al. 2012), Spitzer Space Telescope (Reach et al. 2013), and WISE/NEOWISE are shown with distinguishing symbols, and with their data points connected. The Akari CO and CO₂ production rates were converted to proxy CO₂ rates for comparison with the Spitzer and WISE data sets (see the text).
