Figure 12 from Molecular Environment of the Supernova Remnant IC 443: Discovery of the Molecular Shells Surrounding the Remnant

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Molecular Environment of the Supernova Remnant IC 443: Discovery of the Molecular Shells Surrounding the Remnant

Authors: Yang Su, Min Fang, Ji Yang, Ping Zhou, and Yang Chen

Su et al. 2014 The Astrophysical Journal 788 122.

Provider: AAS Journals

Caption: Figure 12.

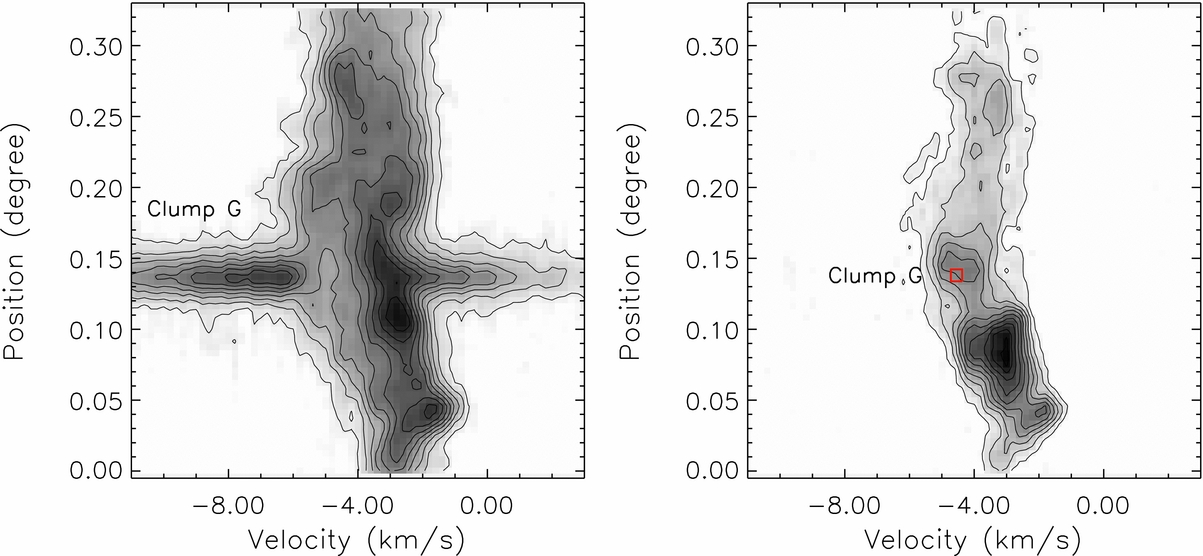

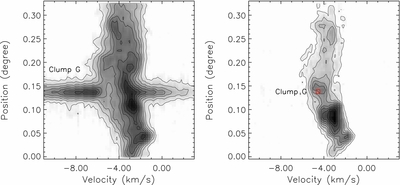

Left: position–velocity diagram of the ¹²CO emission across the shocked clump G along the southwest–northeast (see the short arrow in Figure 3). Right: the ¹³CO emission along the southwest–northeast. Clump G is labeled in the map. The red box indicates the position of the 1720 MHz OH maser emission.
