A Chain of Winking (Oscillating) Filaments Triggered by an Invisible Extreme-ultraviolet Wave

  • Authors: Yuandeng Shen, Kiyoshi Ichimoto, Takako T. Ishii, Zhanjun Tian, Ruijuan Zhao, and Kazunari Shibata

Shen et al. 2014 The Astrophysical Journal 786 151.

  • Provider: AAS Journals

Caption: Figure 5.

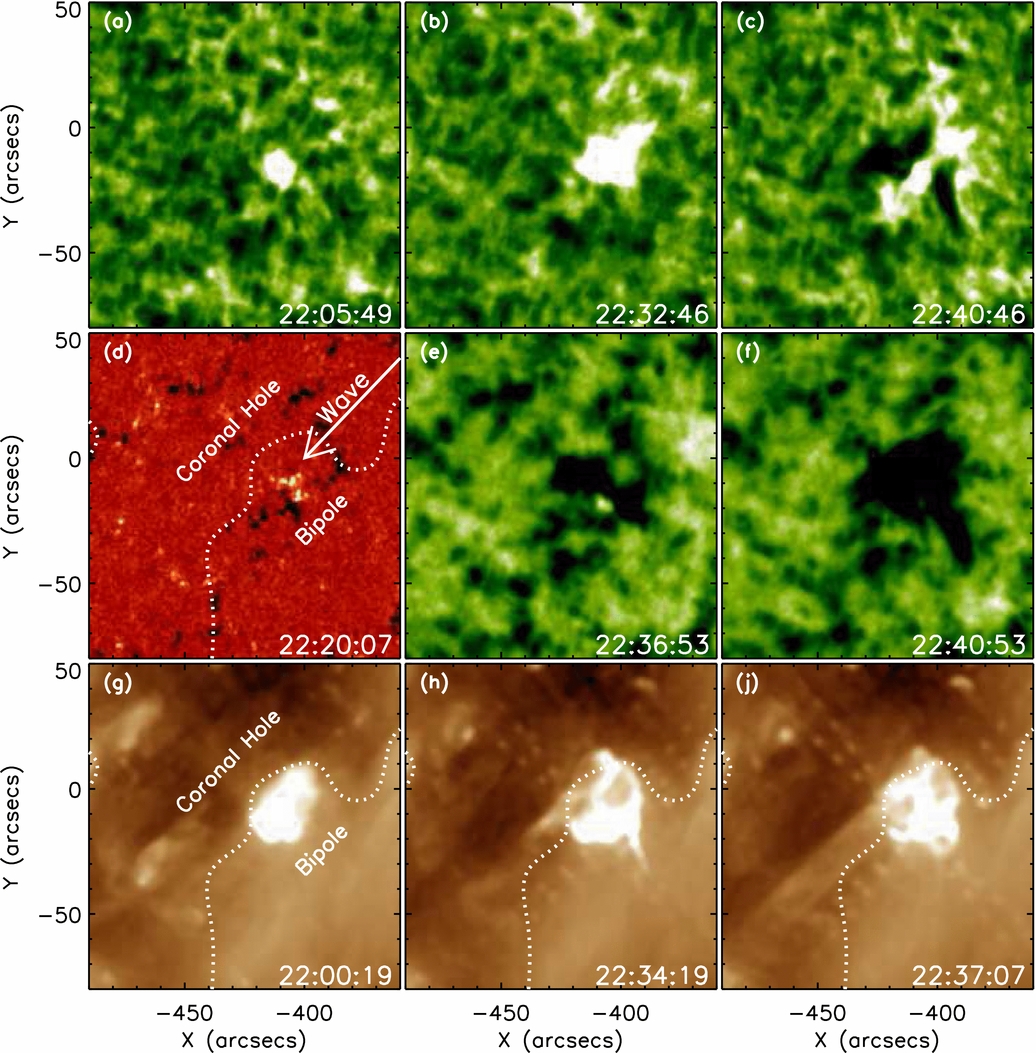

SMART Hα line-center ((a)–(c)) and +0.5 Å ((e)–(f)) and AIA 193 Å ((g)–(j)) images show the ejection of the small jet at the southern boundary of the coronal hole. Panel (d) is an HMI LOS magnetogram showing the magnetic field configuration. The boundary of the coronal hole is overlaid on the magnetogram and 193 Å images as a dotted curve, while the white arrow indicates the propagation direction of the EUV wave. The FOV for each frame is 220'' × 220''.
