Figure 6 from Scattering of the f-mode by Small Magnetic Flux Elements from Observations and Numerical Simulations

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Scattering of the f-mode by Small Magnetic Flux Elements from Observations and Numerical Simulations

Authors: T. Felipe, D. Braun, A. Crouch, and A. Birch

Felipe et al. 2012 The Astrophysical Journal 757 148.

Provider: AAS Journals

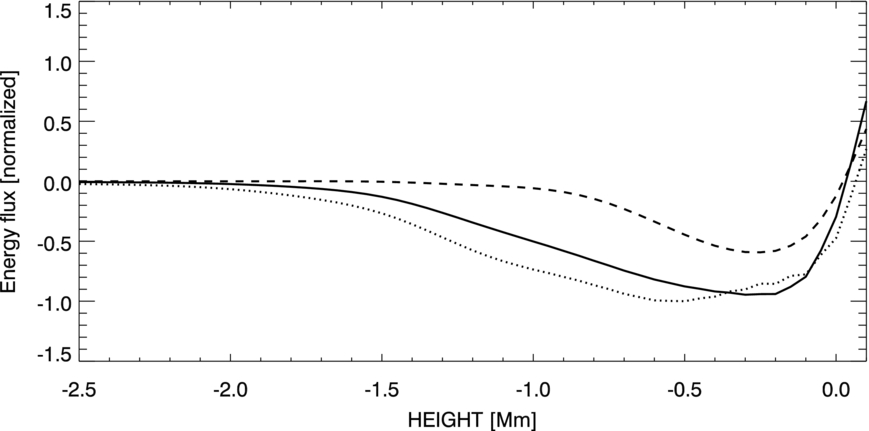

Caption: Figure 6.

Total vertical wave energy flux inside the magnetic flux tube with 560 km radius (dotted line), the tube with 370 km radius (solid line), and the tube with 170 km radius (dashed line). All cases are normalized to the absolute value of the flux of the 560 km radius tube at z = −0.5 Mm.
