Figure 1 from Scattering of the f-mode by Small Magnetic Flux Elements from Observations and Numerical Simulations

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Scattering of the f-mode by Small Magnetic Flux Elements from Observations and Numerical Simulations

Authors: T. Felipe, D. Braun, A. Crouch, and A. Birch

Felipe et al. 2012 The Astrophysical Journal 757 148.

Provider: AAS Journals

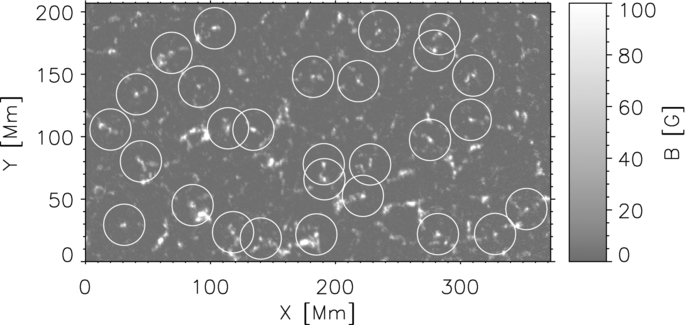

Caption: Figure 1.

Absolute value of the magnetic flux density, after averaging over 4 hr, for one of the 102 MDI regions. White circles indicate the position of the magnetic elements used for the Hankel analysis, and their size corresponds to the outer annulus.
