Figure 3 from Scattering of the f-mode by Small Magnetic Flux Elements from Observations and Numerical Simulations

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Scattering of the f-mode by Small Magnetic Flux Elements from Observations and Numerical Simulations

Authors: T. Felipe, D. Braun, A. Crouch, and A. Birch

Felipe et al. 2012 The Astrophysical Journal 757 148.

Provider: AAS Journals

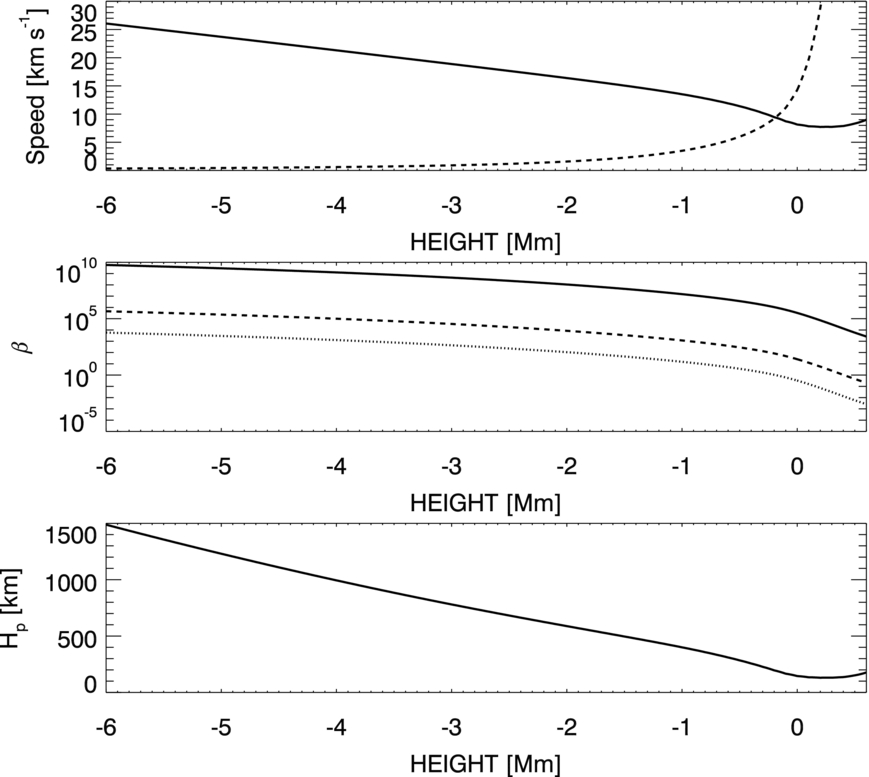

Caption: Figure 3.

Properties of the flux tubes at the axis. Top panel: sound speed (solid line) and Alfvén speed (dashed line) for the 560 km radius tube; middle panel: β parameter for the tubes with radius of 170 km (dashed line), 370 km (solid line), and 560 km (dotted line); bottom panel: pressure scale height.
