Figure 9 from Molecular Clouds in the North American and Pelican Nebulae: Structures

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Molecular Clouds in the North American and Pelican Nebulae: Structures

Authors: Shaobo Zhang, Ye Xu, and Ji Yang

Zhang, Xu, & Yang 2014 The Astronomical Journal 147 46.

Provider: AAS Journals

Caption: Figure 9.

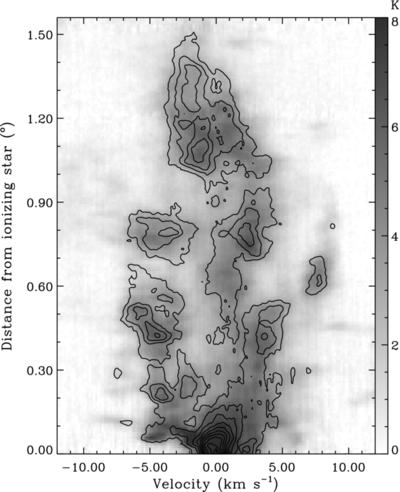

Azimuthally averaged position–velocity map around the ionizing star within the sector region shown in Figure 7. The grayscale background indicates ¹²CO, and black contours indicate ¹³CO. The lowest contour is 5σ (0.4 K), and the contour interval is 5σ.
