Molecular Clouds in the North American and Pelican Nebulae: Structures

Authors: Shaobo Zhang, Ye Xu, and Ji Yang

Zhang, Xu, & Yang 2014 The Astronomical Journal 147 46.

Provider: AAS Journals

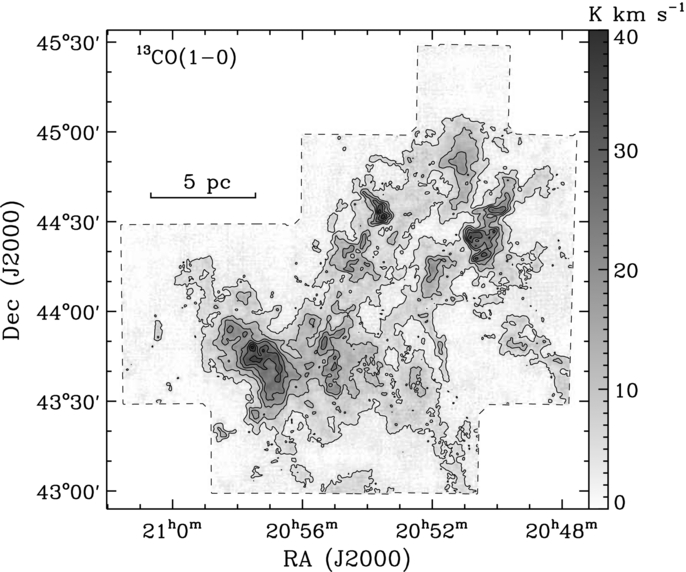

Caption: Figure 4.

Integrated intensity contours and grayscale map of ¹³CO. The spectra are integrated over −20 to 20 km s ⁻¹. The contours are from 4 K km s ⁻¹(~5σ) at intervals of 6 K km s ⁻¹, and the grayscale colors correspond to a linear stretch of integrated intensity.
