Figure 17 from The Shapes of the H I Velocity Profiles of the THINGS Galaxies

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Shapes of the H I Velocity Profiles of the THINGS Galaxies

Authors: R. Ianjamasimanana, W. J. G. de Blok, Fabian Walter, and George H. Heald

Ianjamasimanana et al. 2012 The Astronomical Journal 144 96.

Provider: AAS Journals

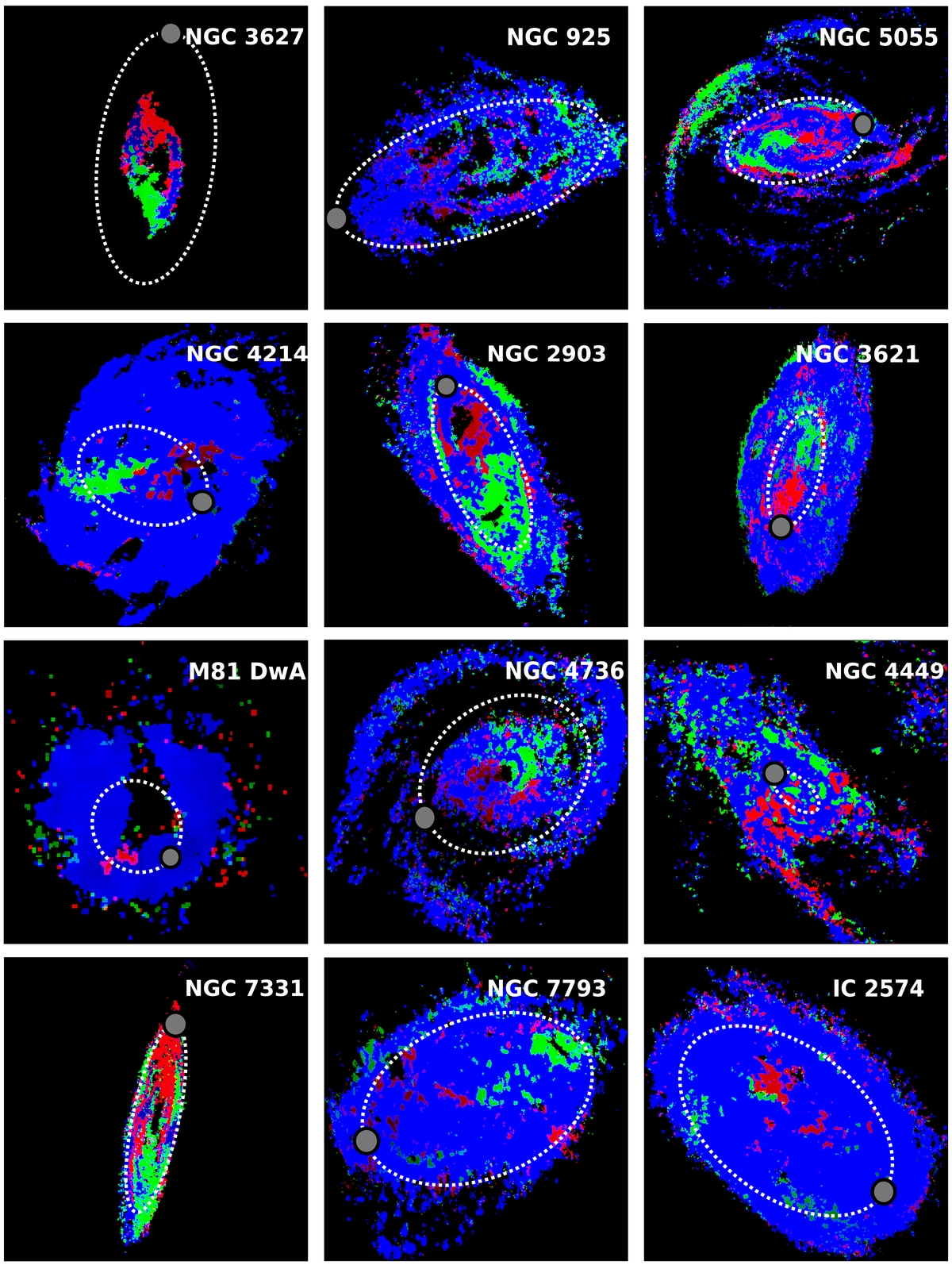

Caption: Figure 17.

Location of symmetric and asymmetric profiles for the THINGS galaxies. Blue pixels represent symmetric profiles (SP). Green and red pixels represent left-handed asymmetric profiles (LHAP) and right-handed asymmetric profiles (RHAP), respectively. Ellipses represent the optical radius r ₂₅. The small gray circles indicate the approaching sides.
