Resolving the Stellar Populations in the Circumnuclear Ring of NGC 7469

  • Authors: T. Díaz-Santos, A. Alonso-Herrero, L. Colina, S. D. Ryder, and J. H. Knapen

Díaz‐Santos et al. 2007 The Astrophysical Journal 661 149.

  • Provider: AAS Journals

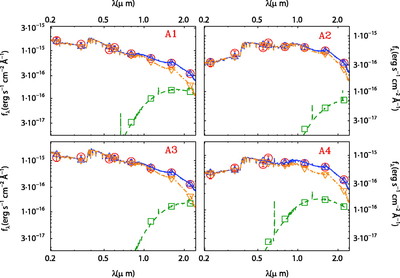

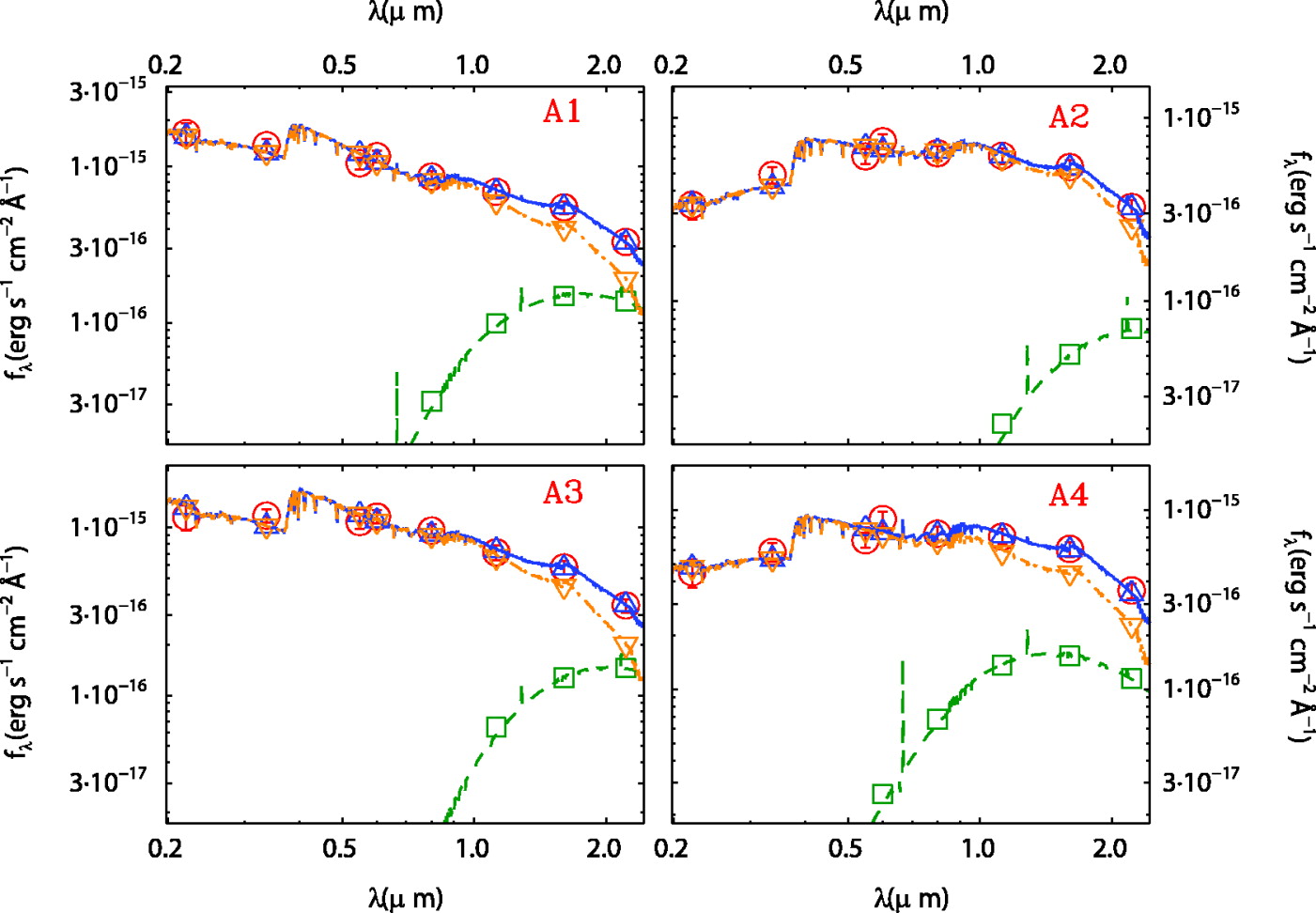

Caption: Fig. 6.

Fits to the photometric SEDs (and spectroscopic data; not shown) of the four ring sections (see locations in Fig. 2). We imposed an extinction of the young stellar population to be ﹩A_{V}\geq 3﹩ mag. Observational data points are shown as redopen circles with their corresponding 1 σ uncertainties. The SED of the young stellar population is represented by a green line, the intermediate‐age population by an orange line, and the total (sum) fitted SED by a blue line. The green squares, orange triangles, and blue triangles are the model photometric points (SB99 SEDs convolved with HST‐filter throughputs) of the best fit for each population, respectively.
