First Results from the CHARA Array. VII. Long‐Baseline Interferometric Measurements of Vega Consistent with a Pole‐On, Rapidly Rotating Star

Authors: J. P. Aufdenberg, A. Mérand, V. Coudé du Foresto, O. Absil, E. Di Folco, P. Kervella, S. T. Ridgway, D. H. Berger, T. A. ten Brummelaar, H. A. McAlister, J. Sturmann, L. Sturmann, and N. H. Turner

Aufdenberg et al. 2006 The Astrophysical Journal 645 664.

Provider: AAS Journals

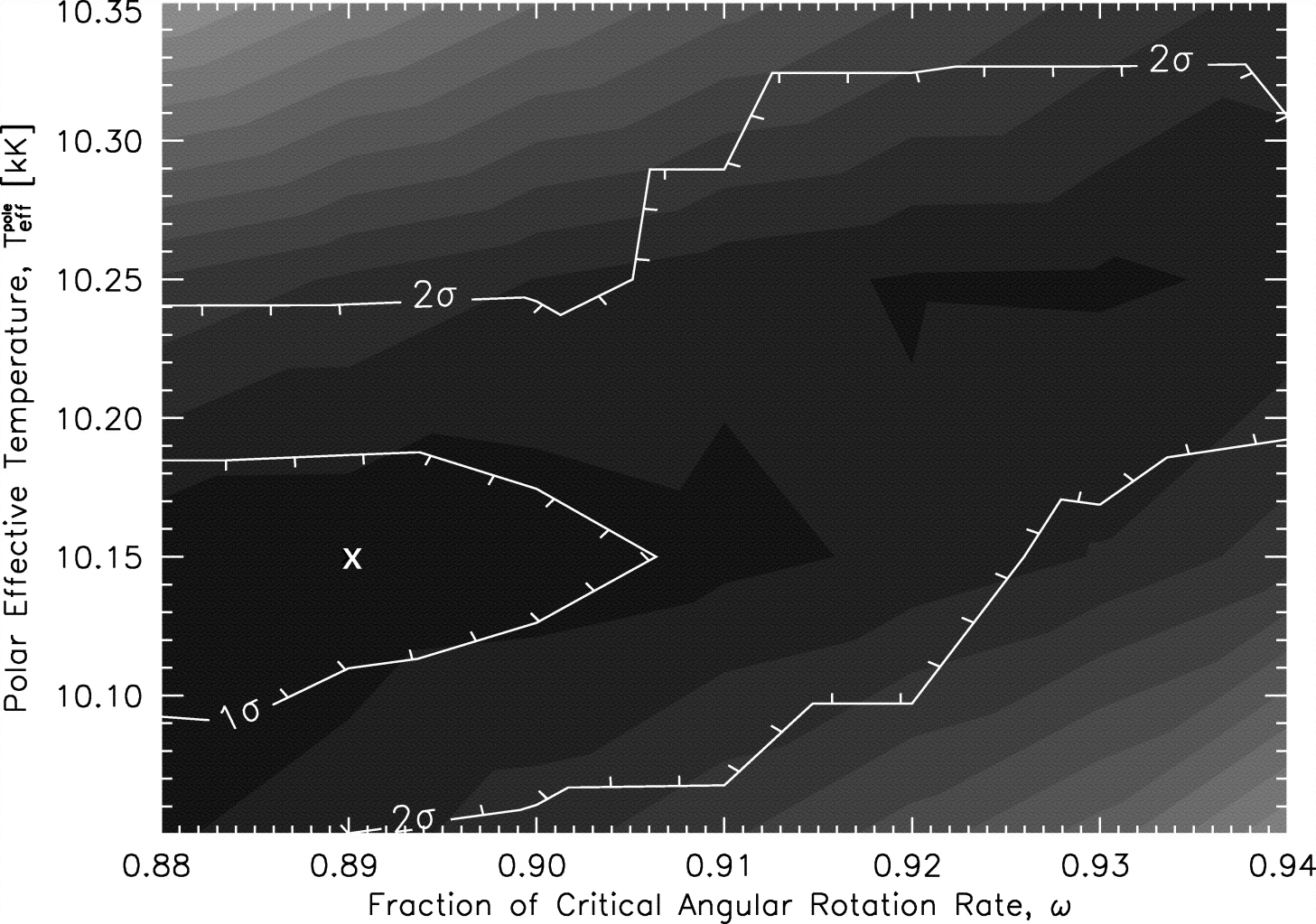

Caption: Fig. 7.

Contour plot of ﹩\chi ^{2}_{\nu }﹩ for the SED fits in the ﹩( \omega ,\ T^{\mathrm{pole}\,}_{\mathrm{eff}\,}) ﹩‐plane. The ﹩\omega ﹩ range is limited to the 1 ﹩\sigma ﹩ range from CHARA/FLUOR fits (see Fig. 6). The polar surface gravity is fixed at ﹩\mathrm{log}\,( g) _{\mathrm{pole}\,}=4.1﹩. The labeled contours denote the 1 and 2 ﹩\sigma ﹩ regions from the ﹩F﹩ test. The cross marks the location of the best‐fit model, ﹩\chi ^{2}_{\nu }=8.7﹩.
