First Results from the CHARA Array. VII. Long‐Baseline Interferometric Measurements of Vega Consistent with a Pole‐On, Rapidly Rotating Star

Authors: J. P. Aufdenberg, A. Mérand, V. Coudé du Foresto, O. Absil, E. Di Folco, P. Kervella, S. T. Ridgway, D. H. Berger, T. A. ten Brummelaar, H. A. McAlister, J. Sturmann, L. Sturmann, and N. H. Turner

Aufdenberg et al. 2006 The Astrophysical Journal 645 664.

Provider: AAS Journals

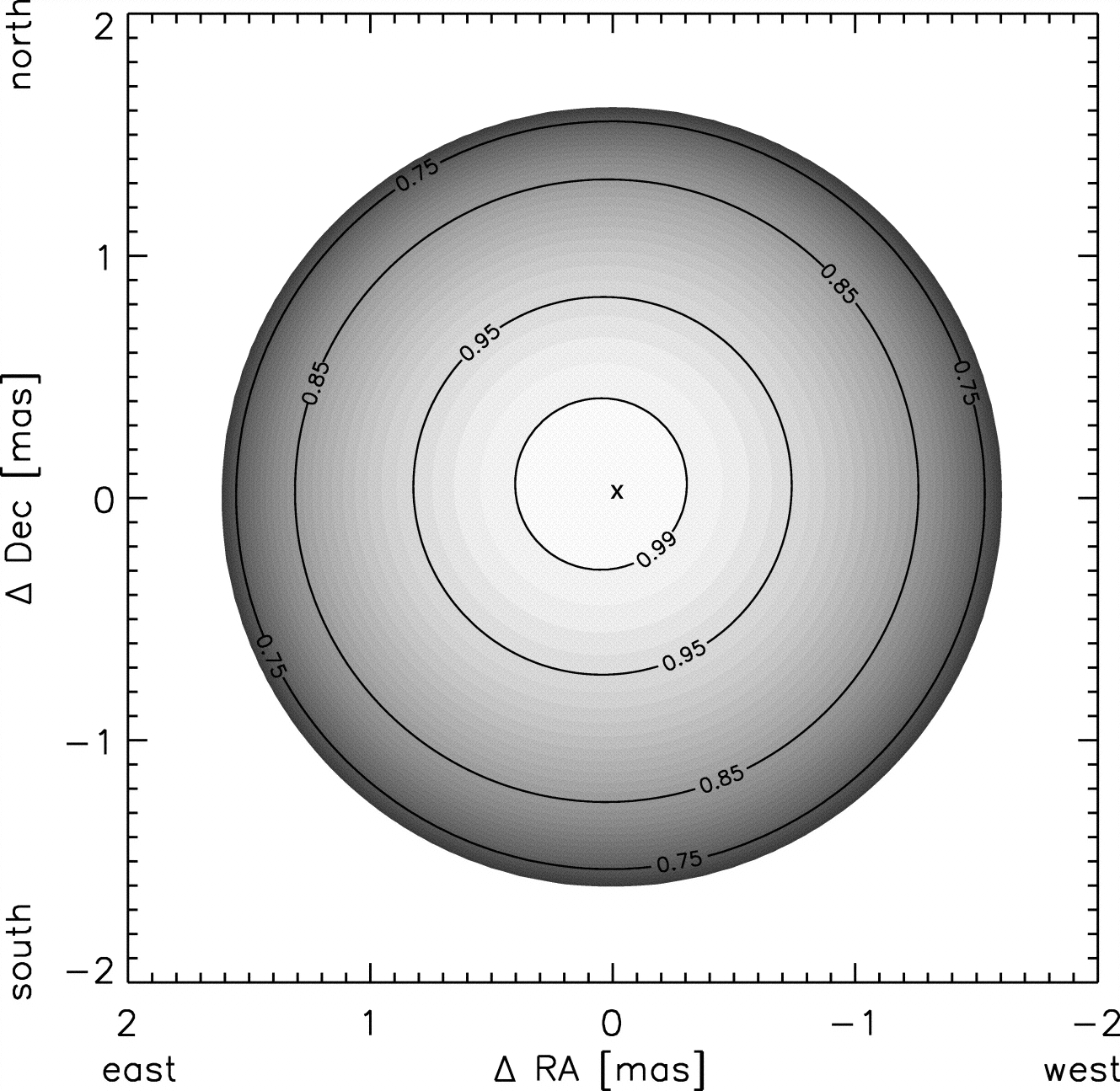

Caption: Fig. 3.

Synthetic brightness map (linear stretch) of Vega for our best‐fitting parameters: ﹩\omega =0.91﹩, ﹩\theta _{\mathrm{equ}\,}=3.329﹩ mas, ﹩T^{\mathrm{pole}\,}_{\mathrm{eff}\,}=10,150﹩ K, ﹩\mathrm{log}\,( g) _{\mathrm{pole}\,}=4.10﹩. For this model, Vega’s pole is inclined ﹩5^{\circ }﹩ toward a position angle of ﹩40^{\circ }﹩, with the subsolar point marked with an "x." The labeled intensity contours are relative to the maximum intensity in the map.
