Spectroscopy and Three‐Dimensional Imaging of the Crab Nebula

Authors: Andrej Čadež, Alberto Carramiñana, and Simon Vidrih

Čadež, CarramiÑana, & Vidrih 2004 The Astrophysical Journal 609 797.

Provider: AAS Journals

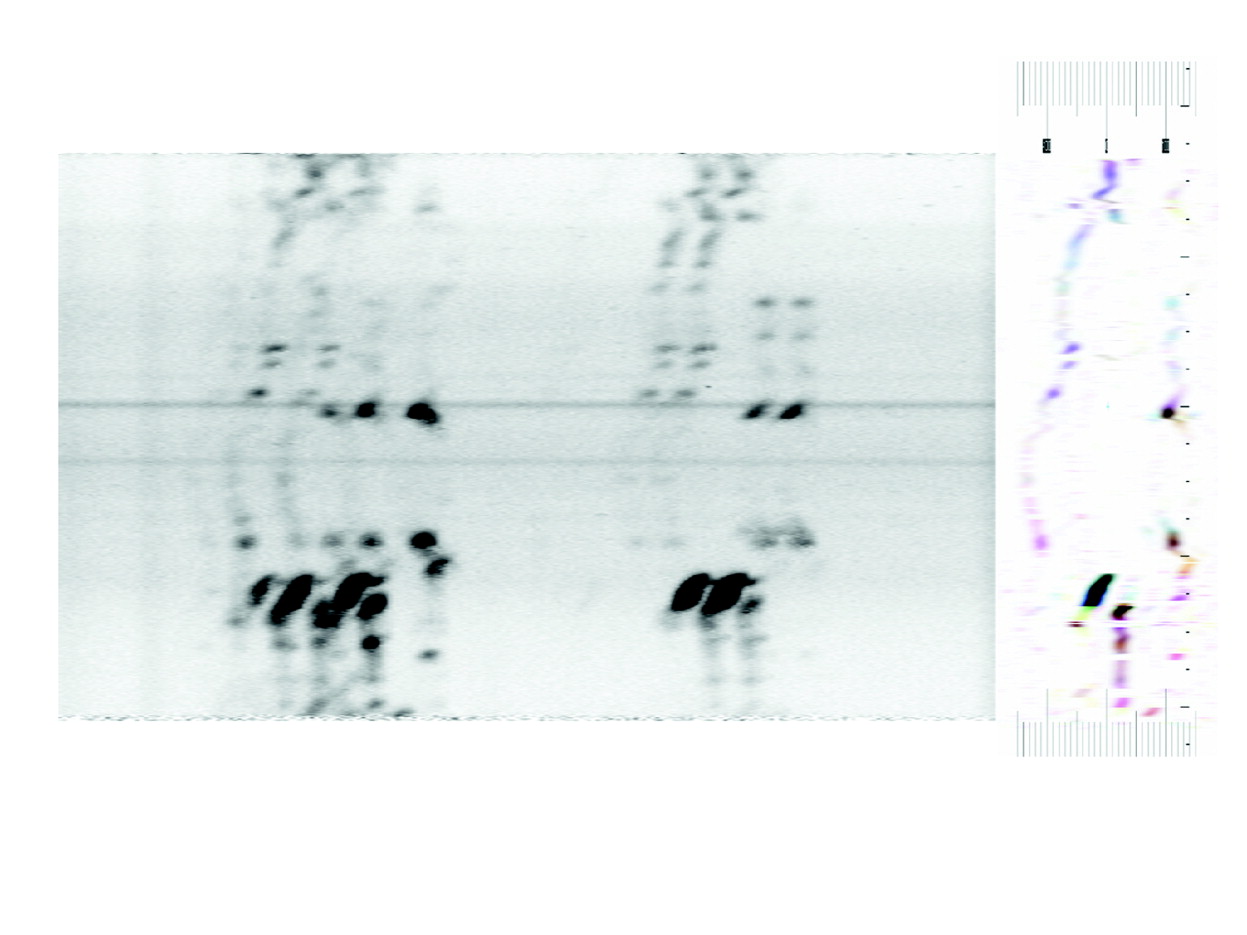

Caption: Fig. 7.

Plot of the ﹩\psi =90^{\circ }﹩ low‐resolution spectrum (left) and its reconstruction from velocity components (right) . For color coding, and abscissa and ordinate range on the reconstruction see Fig. 9.
