First Light of Neutron Star Mergers: Off-axis Cocoon Cooling X-Ray Emission from Short Gamma-Ray Burst Jets

  • Authors: Jian-He Zheng, Wenbin Lu

Jian-He Zheng and Wenbin Lu 2026 The Astrophysical Journal Letters 1010 .

  • Provider: AAS Journals

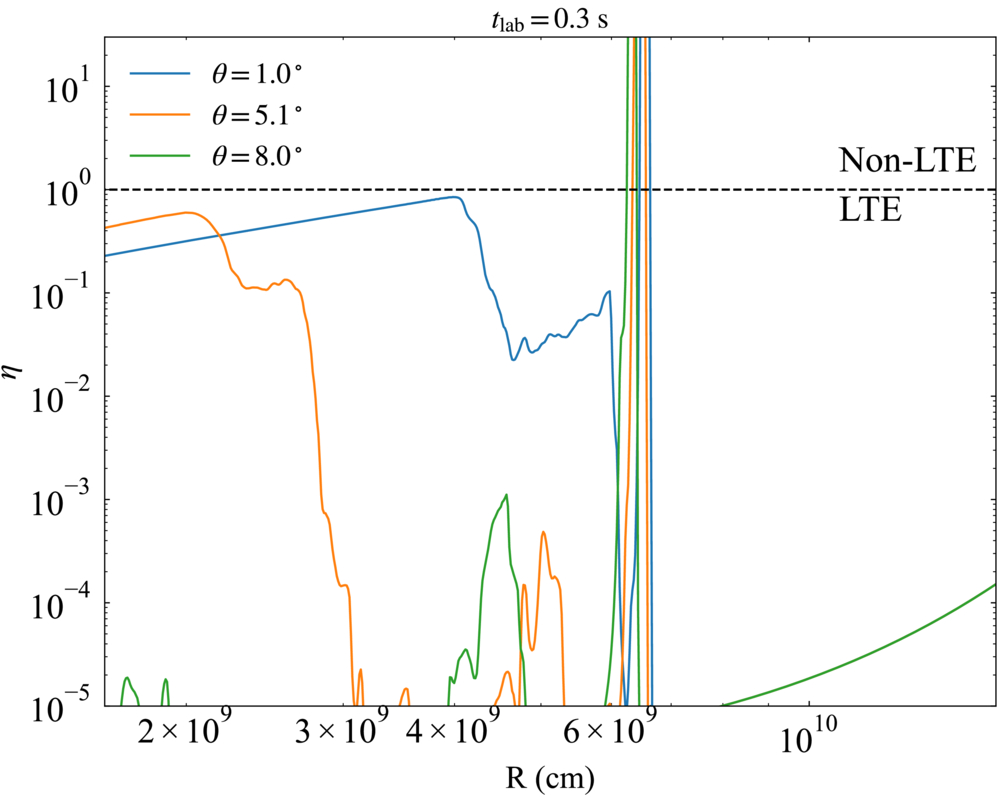

Caption: Figure B1.

Thermalization parameter η at the breakout time (tlab = 0.3 s) for the canonical model. The blue, orange, and green curves correspond to θ = 1﹩\mathop{.}\limits^{{\unicode{x000b0}}}﹩0, 5﹩\mathop{.}\limits^{{\unicode{x000b0}}}﹩1, and 8﹩\mathop{.}\limits^{{\unicode{x000b0}}}﹩0, respectively. The dashed line marks η = 1, separating the LTE and non-LTE regimes. The jet frontier is at ∼6 × 109 cm.
