Mapping the WISPIT 2 Planet-hosting Cavity at Sub-Hill-radius Scales

  • Authors: Myriam Benisty, Stefano Facchini, Richard Teague, Francesco Zagaria, Pietro Curone, Viviana Pezzotta, Jaehan Bae, Gabriele Cugno, Daniel J. Price

Myriam Benisty et al 2026 The Astrophysical Journal Letters 1009 .

  • Provider: AAS Journals

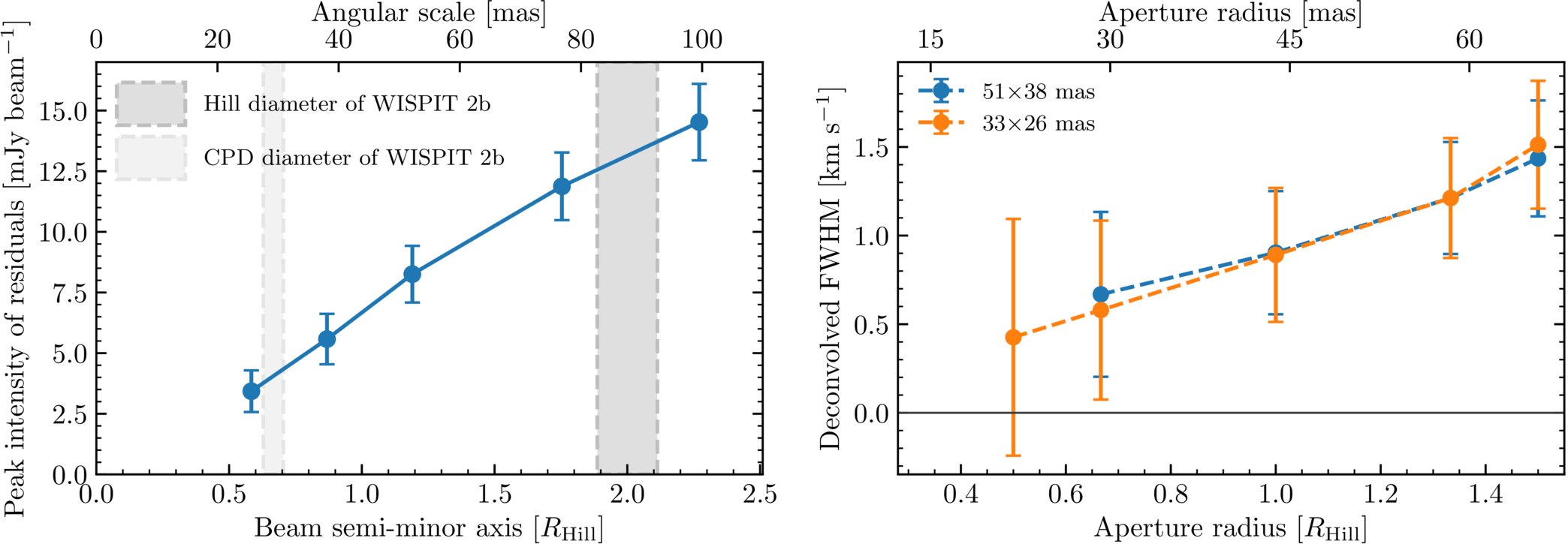

Caption: Figure 10.

Left: peak intensity within a beam area centered on the astrometric position of WISPIT 2b for the different realizations of the mirrored cubes. Right: intrinsic Gaussian line width (FWHM) as a function of extraction aperture radius for the 51 × 38 and 33 × 26 mas mirrored cubes. For each aperture, the spectrum within ∣v − vb∣≤3 km s−1 was fitted with a Gaussian profile, and the measured line width was corrected for the spectral resolution of 0.85 km s−1 assuming Gaussian broadening. Error bars correspond to the 1σ uncertainties from the Gaussian fit.
