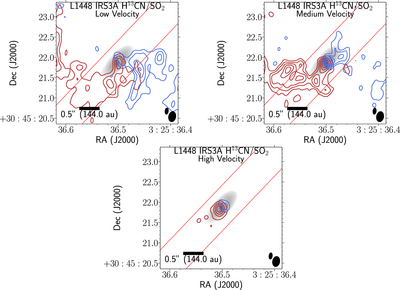

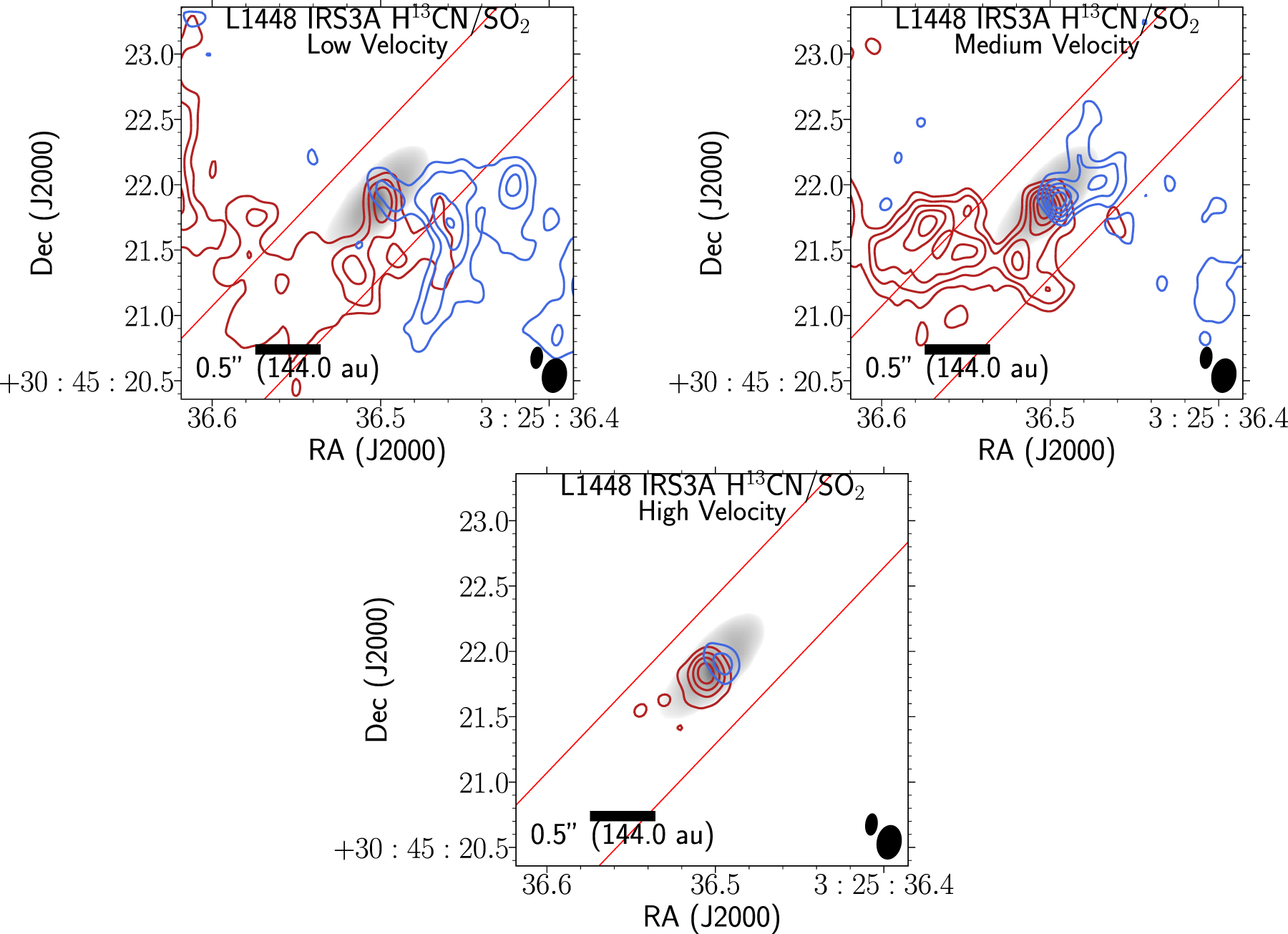

Caption: Figure 10.
H13CN/SO2 integrated intensity map toward IRS3A, whose emission appears to trace rotation within the inner disk. The panels correspond to low-, medium-, and high-velocity ranges. The following panel descriptions will be noted red (blue), corresponding to the Doppler shifted emission. The system velocity of the H13CN/SO2 emission (∼5.4 km s−1) agrees with system velocity of C17O, likely tracing H13CN emission and not SO2 emission. Low velocity: velocity ranges 5.2 ﹩\to ﹩ 6.5 km s−1 (4.1 ﹩\to ﹩ 5.2 km s−1), contours start at 4σ (4σ) and iterate by 2σ (2σ) with the 1σ level starting at 0.0021 (0.0021) Jy beam−1 for the red (blue) channels. Medium velocity: velocity ranges 6.5 ﹩\to ﹩ 7.4 km s−1 (3.0 ﹩\to ﹩ 4.1 km s−1), contours start at 4σ (4σ) and iterate by 2σ (2σ) with the 1σ level starting at 0.0016 (0.0016) Jy beam−1 for the red (blue) channels. High velocity: velocity ranges 7.4 ﹩\to ﹩ 8.6 km s−1 (1.8 ﹩\to ﹩ 3.0 km s−1), contours start at 4σ (4σ) and iterate by 3σ (3σ) with the 1σ level starting at 0.0021 (0.0021) Jy beam−1 for the red (blue) channels. The H13CN synthesized beam (0.″22 × 0.″14) is the bottom rightmost ellipse on each of the panels, and the continuum synthesized beam (0.″11 × 0.″05) is offset diagonally.
