Warped and Hooked: Mapping the Magellanic Clouds in Three Dimensions Using Red Clump Stars

Authors: Slater J. Oden, David L. Nidever, Joshua Povick, Pol Massana, Yumi Choi, Roeland P. van der Marel, Maria-Rosa L. Cioni, Joanna Sakowska, Knut A. G. Olsen, Lara Cullinane, Danny Horta, Andres Almeida, J. A. Carballo-Bello, D. Crnojević, P. S. Ferguson, C. E. Martínez-Vázquez, G. E. Medina, B. Mutlu-Pakdil, M. Navabi, A. B. Pace, A. H. Riley, Guy S. Stringfellow, A. K. Vivas, David J. James

Slater J. Oden et al 2026 The Astrophysical Journal 1003 .

Provider: AAS Journals

Caption: Figure 14.

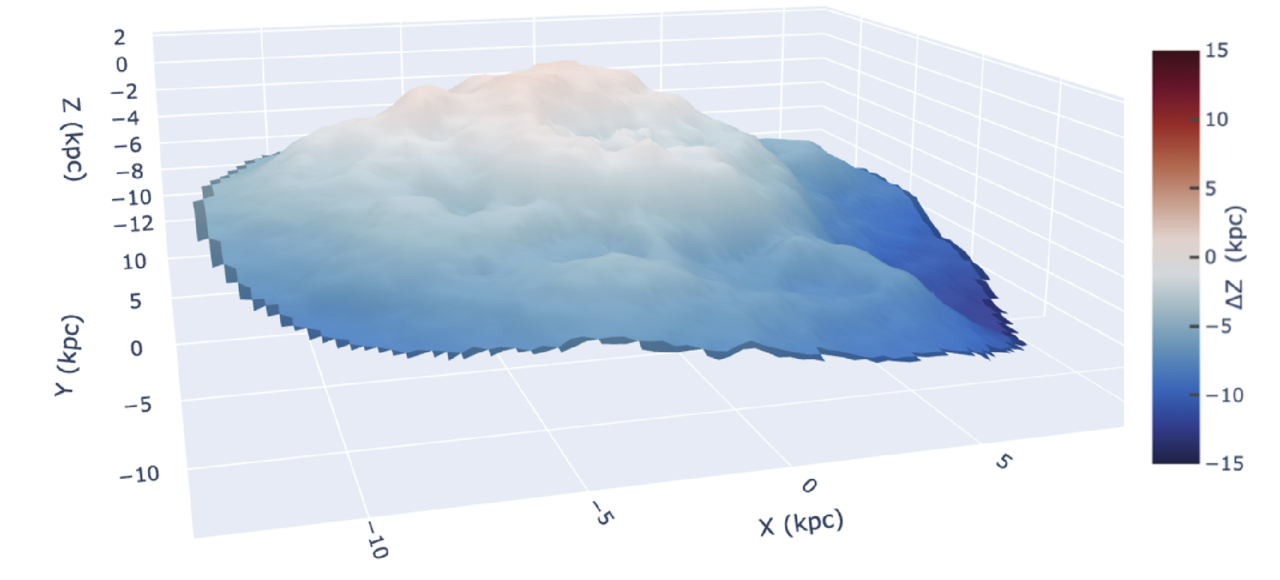

3D plot in the on-sky Cartesian coordinate system (x, y, z) described in Section 4.2 of our LMC RC sample out to ∼13°. The colored surface shows the median z-coordinate, with blue (red) indicating farther (closer) distances relative to the adopted LMC-centric distance D₀ = 49.15 kpc. The accompanying animation rotates the viewpoint once around the system, illustrating the 3D structure and warp morphology of the LMC disk. The real-time duration of the animation is 14 s.

(An animation of this figure is available in the online article.)

(An animation of this figure is available.)

The video/animation of this figure is available in the online journal.
