Warped and Hooked: Mapping the Magellanic Clouds in Three Dimensions Using Red Clump Stars

  • Authors: Slater J. Oden, David L. Nidever, Joshua Povick, Pol Massana, Yumi Choi, Roeland P. van der Marel, Maria-Rosa L. Cioni, Joanna Sakowska, Knut A. G. Olsen, Lara Cullinane, Danny Horta, Andres Almeida, J. A. Carballo-Bello, D. Crnojević, P. S. Ferguson, C. E. Martínez-Vázquez, G. E. Medina, B. Mutlu-Pakdil, M. Navabi, A. B. Pace, A. H. Riley, Guy S. Stringfellow, A. K. Vivas, David J. James

Slater J. Oden et al 2026 The Astrophysical Journal 1003 .

  • Provider: AAS Journals

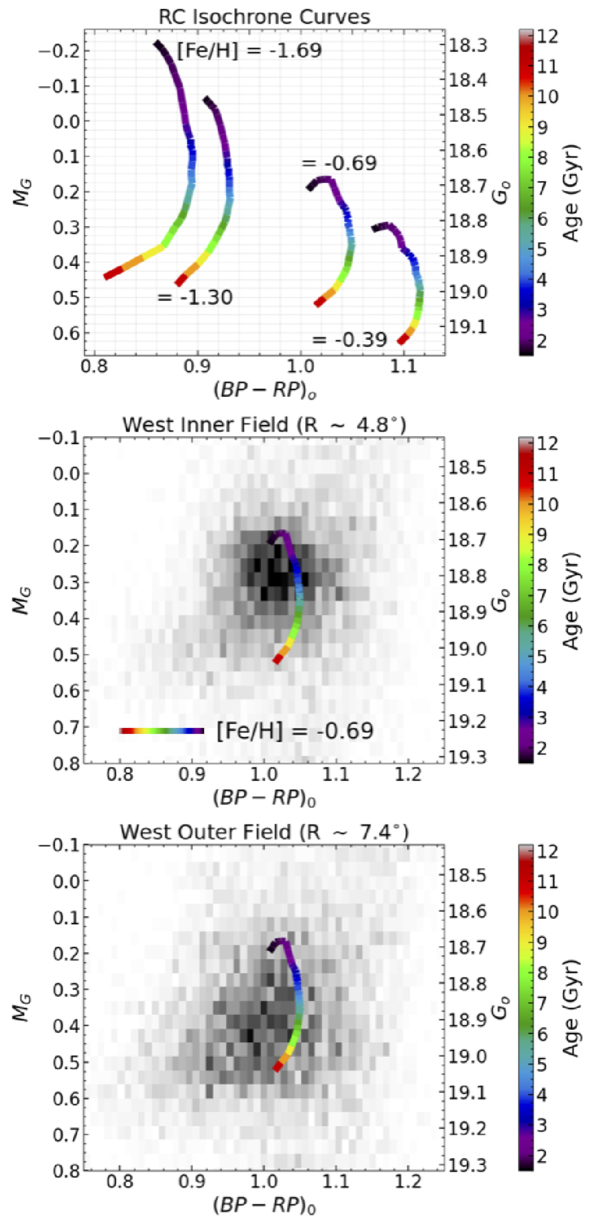

Caption: Figure 7.

Top: theoretical RC isochrones from L. Girardi & M. Salaris (2001) for four metallicities, with each curve labeled by its corresponding [Fe/H] value. Isochrones are color coded by age (in gigayears). At fixed age, more metal-poor RC stars are bluer and intrinsically brighter (i.e., have smaller absolute magnitudes MG). At fixed metallicity, RC color remains nearly constant with age, except at the youngest (≲2 Gyr) and oldest (≳9–10 Gyr) extremes, where age becomes the dominant driver of color rather than metallicity. Middle: observed RC locus in the western main disk of the LMC (﹩R\approx 4\mathop{.}\limits^{^\circ }8﹩). Bottom: observed RC locus in the western diffuse, low-surface-brightness periphery of the LMC (﹩R\approx 7\mathop{.}\limits^{^\circ }4﹩). In both the middle and bottom panels, the [Fe/H] = −0.69 dex theoretical RC curve is overplotted and color coded by age.
