Evolution of Spatial Complexity in Flare Ribbon Substructure and Its Relationship to Magnetic Reconnection Dynamics

  • Authors: Marcel F. Corchado Albelo, Maria D. Kazachenko, Ryan J. French, Vadim M. Uritsky, Emily Mason, Cole A. Tamburri, Rahul Yadav, Benjamin J. Lynch

Marcel F. Corchado Albelo et al 2026 The Astrophysical Journal 1000 .

  • Provider: AAS Journals

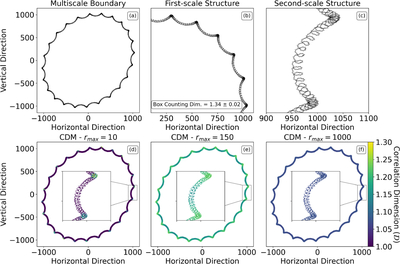

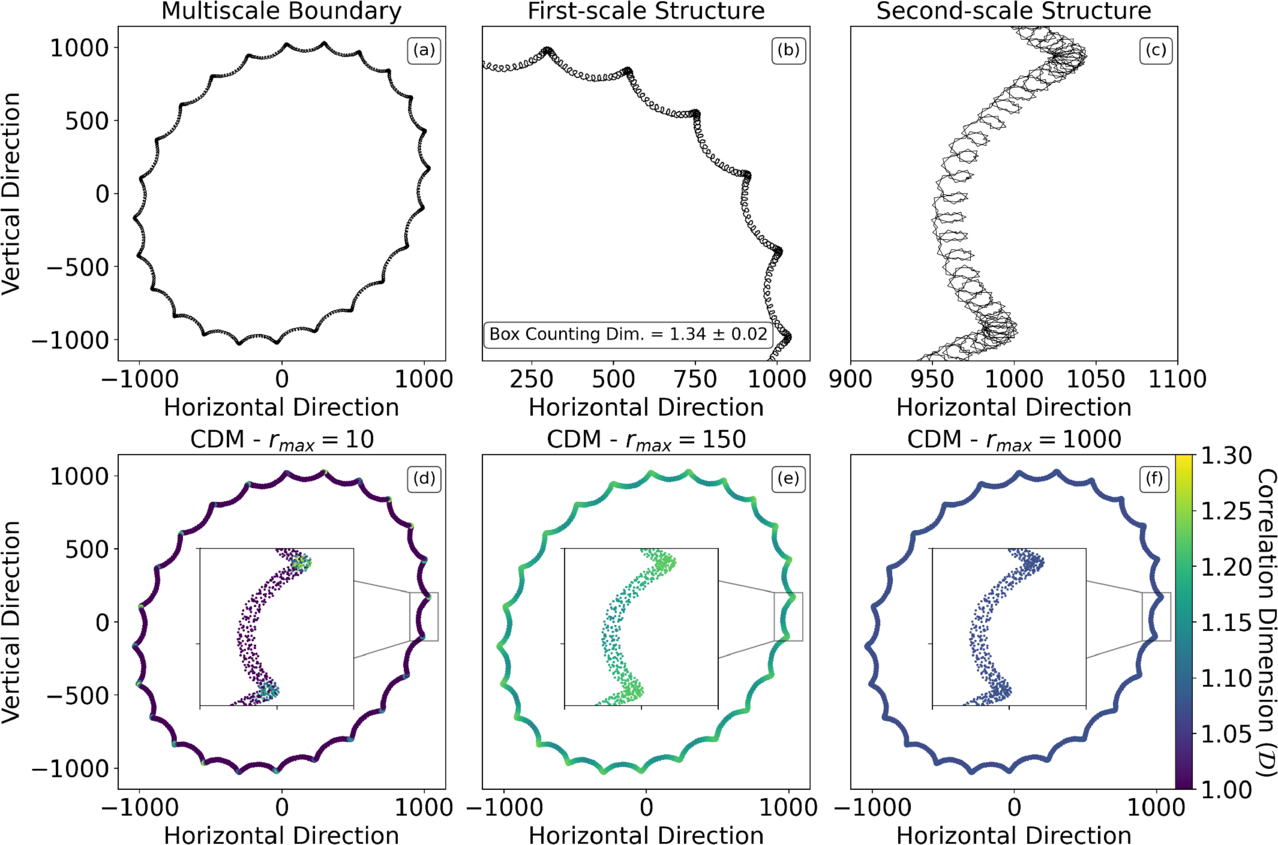

Caption: Figure 7.

CDM on a synthetic multiscale boundary and sensitivity to ﹩{r}_{{{\rm{\max }}}}﹩. (a)–(c) The boundary with multiple embedded spatial scales. (d)–(f) CDM results for ﹩{r}_{{{\rm{\max }}}}=\{10,150,1000\}﹩, illustrating how different scale ranges control the inferred ﹩{ \mathcal D }﹩ values and identification of high-complexity regions.
