Evolution of Spatial Complexity in Flare Ribbon Substructure and Its Relationship to Magnetic Reconnection Dynamics

  • Authors: Marcel F. Corchado Albelo, Maria D. Kazachenko, Ryan J. French, Vadim M. Uritsky, Emily Mason, Cole A. Tamburri, Rahul Yadav, Benjamin J. Lynch

Marcel F. Corchado Albelo et al 2026 The Astrophysical Journal 1000 .

  • Provider: AAS Journals

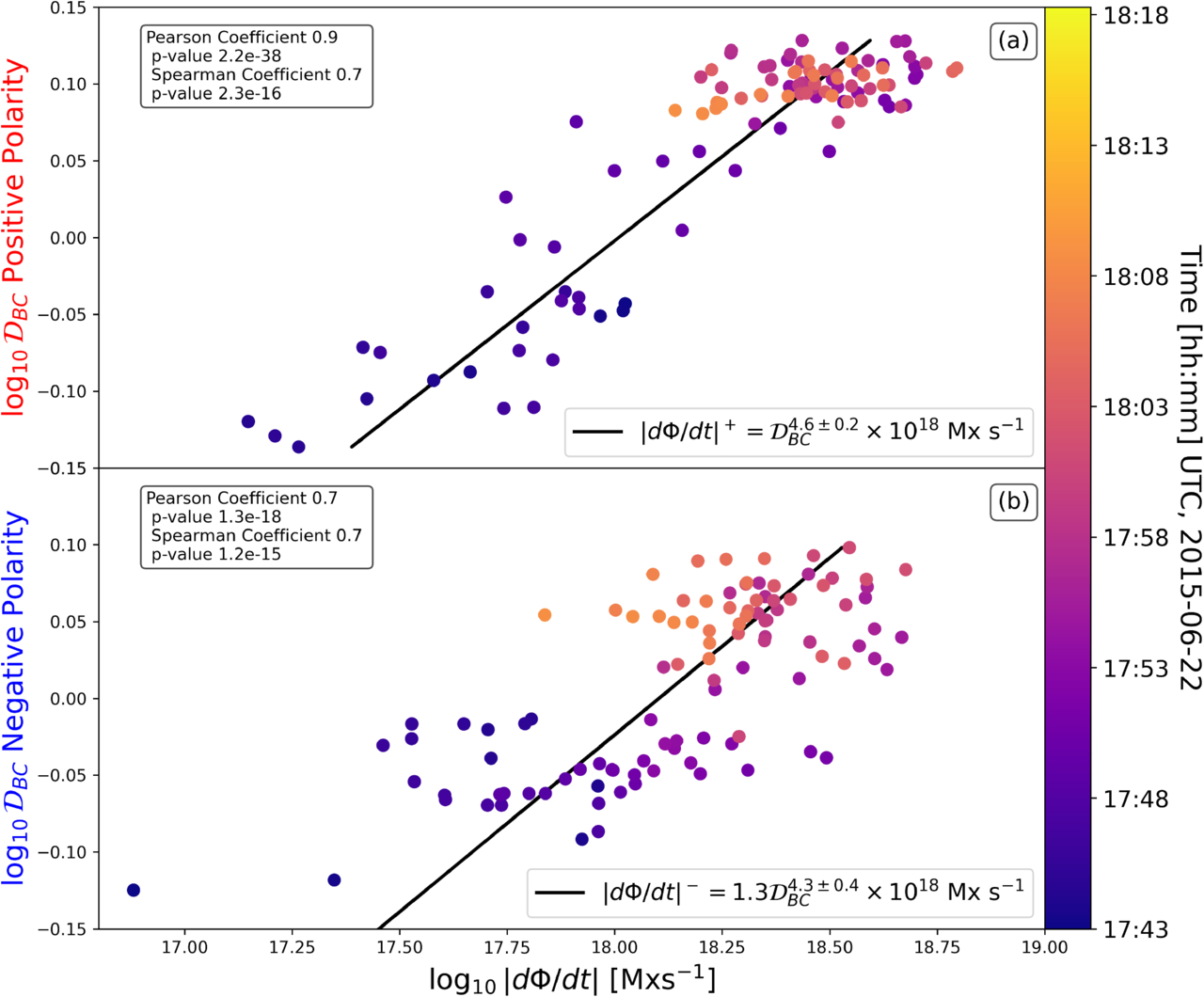

Caption: Figure 4.

Reconnection rate versus box-counting dimension. Absolute reconnection flux rate ∣dΦ/dt∣ versus box-counting dimension ﹩{{ \mathcal D }}_{{{\rm{BC}}}}﹩ for the (a) positive and (b) negative polarity FRBLEs. Dot color encodes time (from ∼17:43 UT to ∼18:13 UT). Pearson and Spearman coefficients are listed in each panel. Best-fit power-law scales are shown in the lower right of each panel.
