Three-dimensional, Time-dependent MHD Simulation of Disk–Magnetosphere–Stellar Wind Interaction in a T Tauri, Protoplanetary System

  • Authors: Ofer Cohen, Cecilia Garraffo, Jeremy J. Drake, Kristina Monsch, Igor V. Sokolov, Julián D. Alvarado-Gómez, Federico Fraschetti

Ofer Cohen et al 2023 The Astrophysical Journal 949 .

  • Provider: AAS Journals

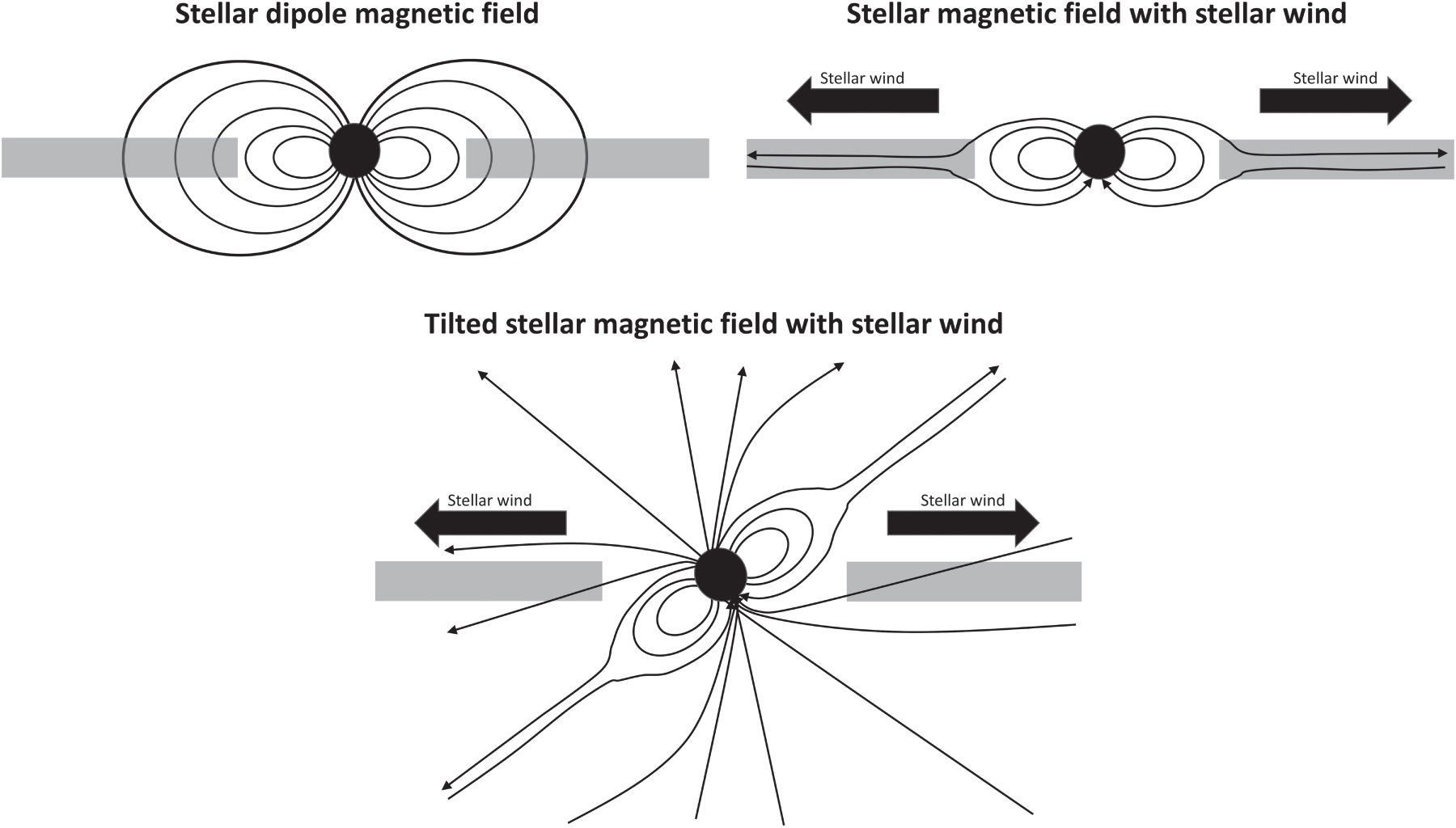

Caption: Figure 10.

Top left: a pure stellar dipole field extends into the disk with a vertical field near the equator. Top right: the existence of a stellar wind stretches the magnetic field and opens it up at the Alfvén point. Thus, the field near/inside the disk is expected to be radial, not vertical. If it is affected by the disk rotation, it is azimuthal, but still not vertical. Bottom: if the stellar dipole field is tilted, the field is still mostly radial.
