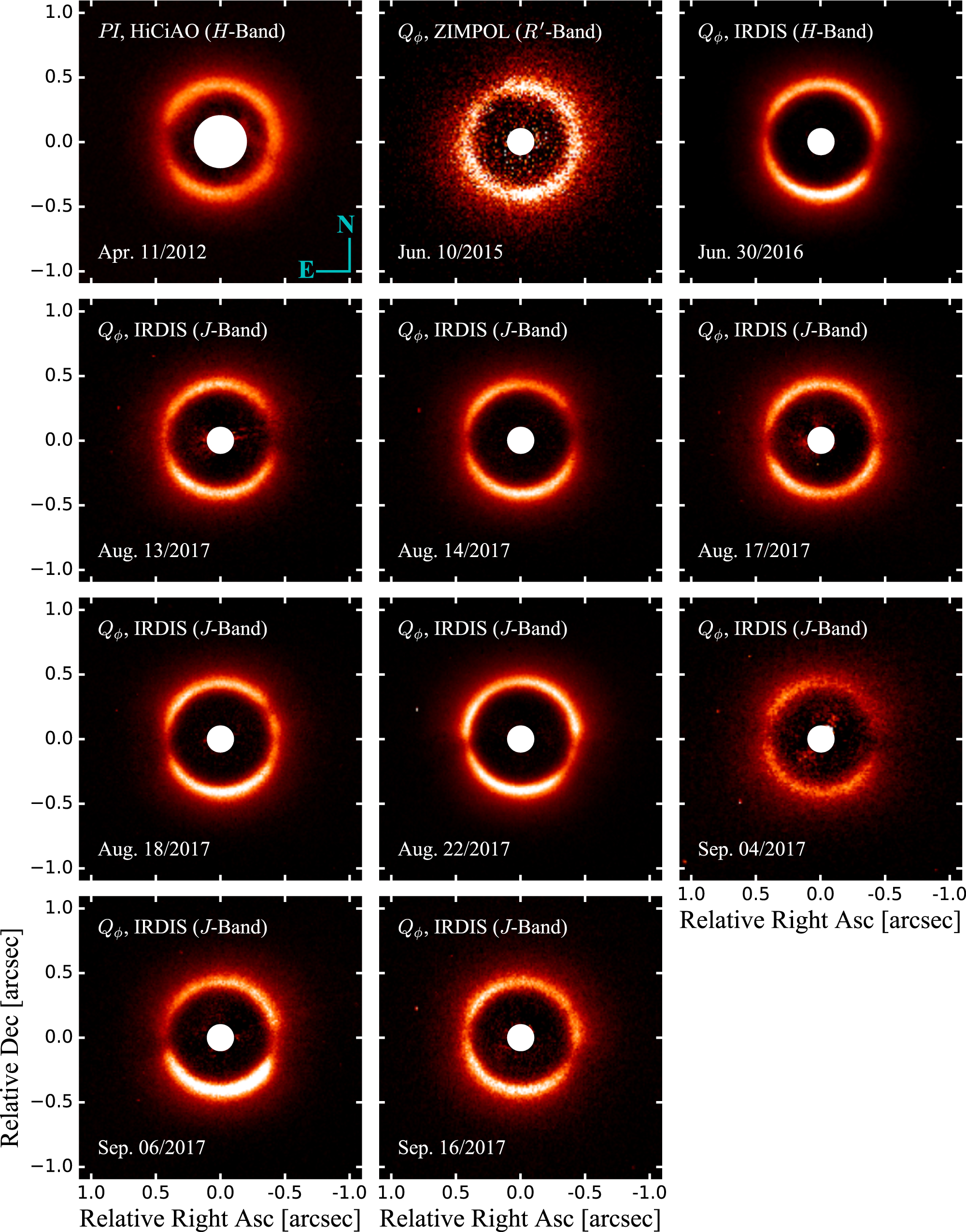

Scattered light observations of the transition disk around J1604 (they are not scaled by r²). The left upper panel corresponds to H-band polarized intensity observations with HiCIAO reported by Mayama et al. (2012). The rest of the panels correspond to the Stokes parameter Q_ϕ obtained with VLT/SPHERE. The center upper panel corresponds to observations with ZIMPOL at R′-band. The right upper panel corresponds to observations with IRDIS at H-band, while the rest of the panels are IRDIS observations at J-band. In all the panels, the color scale is linear and in arbitrary units, and the dates are reported when the observations started.

(An animation of this figure is available.)

The video/animation of this figure is available in the online journal.
